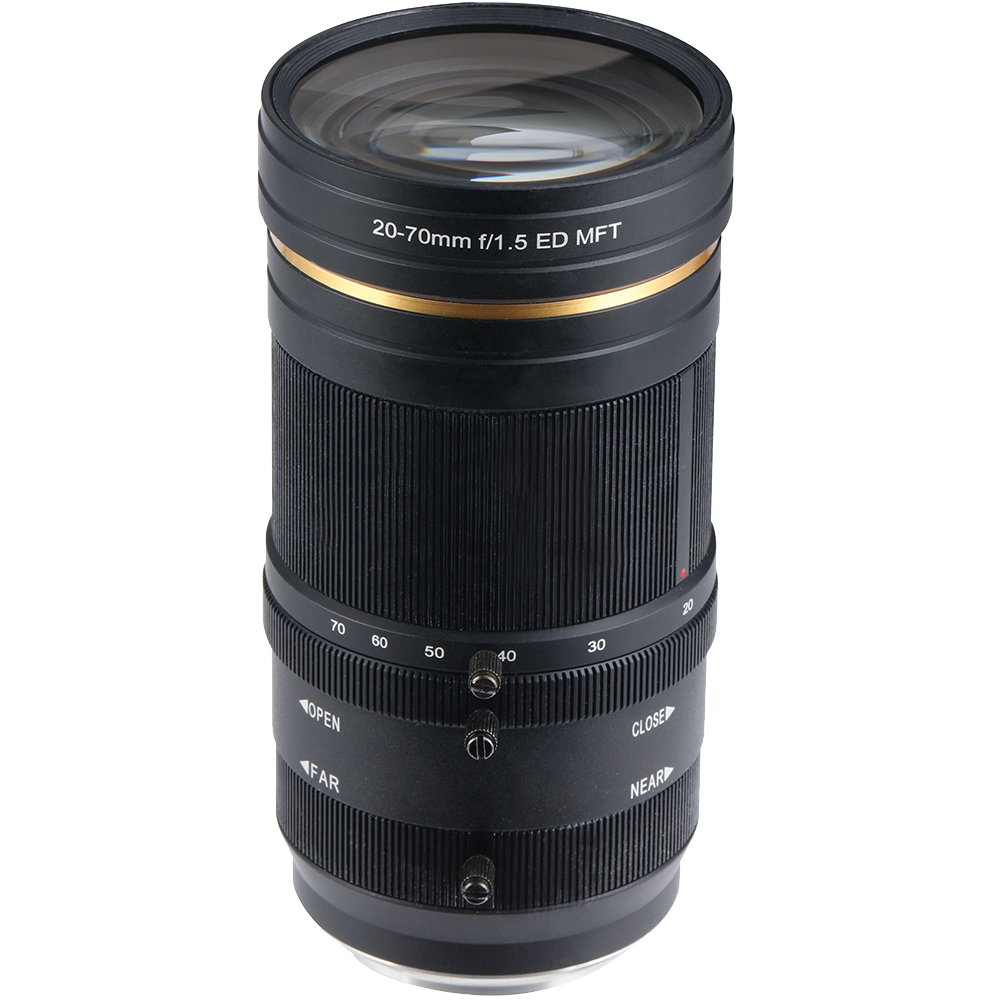

Dahua DH-PFL2070-J12M Features
General
- 4/3-in. 12MP Lens
- 20 mm to 70 mm Vari-focal Lens
- M43 Mount
- Designed for Extreme Temperature Environments
Technical Specs
- Image Format 4/3-in.
- Focal Length 20 mm to 70 mm
- Resolution 12 MP
- Aperture F1.5
- Mount M43
- Field of View (D x H x V)
4096 x 2160 (17:9): Wide: 55.0° x 48.1° x 24.9°, Tele: 17.9° x 15.9° x 8.4°
3704 x 2778 (4:3): Wide: 55.0°x 43.3°x 32.2°, Tele: 17.9°x 14.4°x 10.8°
3840 x 2160 (16:9): Wide: 52.1°x 45.0°x 24.9° Tele: 17.0°x 14.9°x 8.4° - Lens Control Focus: Manual, Iris: Manual
- Minimum Object Distance 3.0 m (9.84 ft)
- Dimensions 73.0 mm x 149.20 mm (2.87 in. x 5.87 in.)
- Weight 0.99 kg (2.18 lb)
- Operating Temperature –30° C to 70° C (–22° F to 158° F)
- Operating Humidity < 90% RH
- Certifications Electromagnetic Compatibility (EMC) FCC 47 CFR Part 15 Subpart B, EN 55032, EN 55024, EN50130-4
