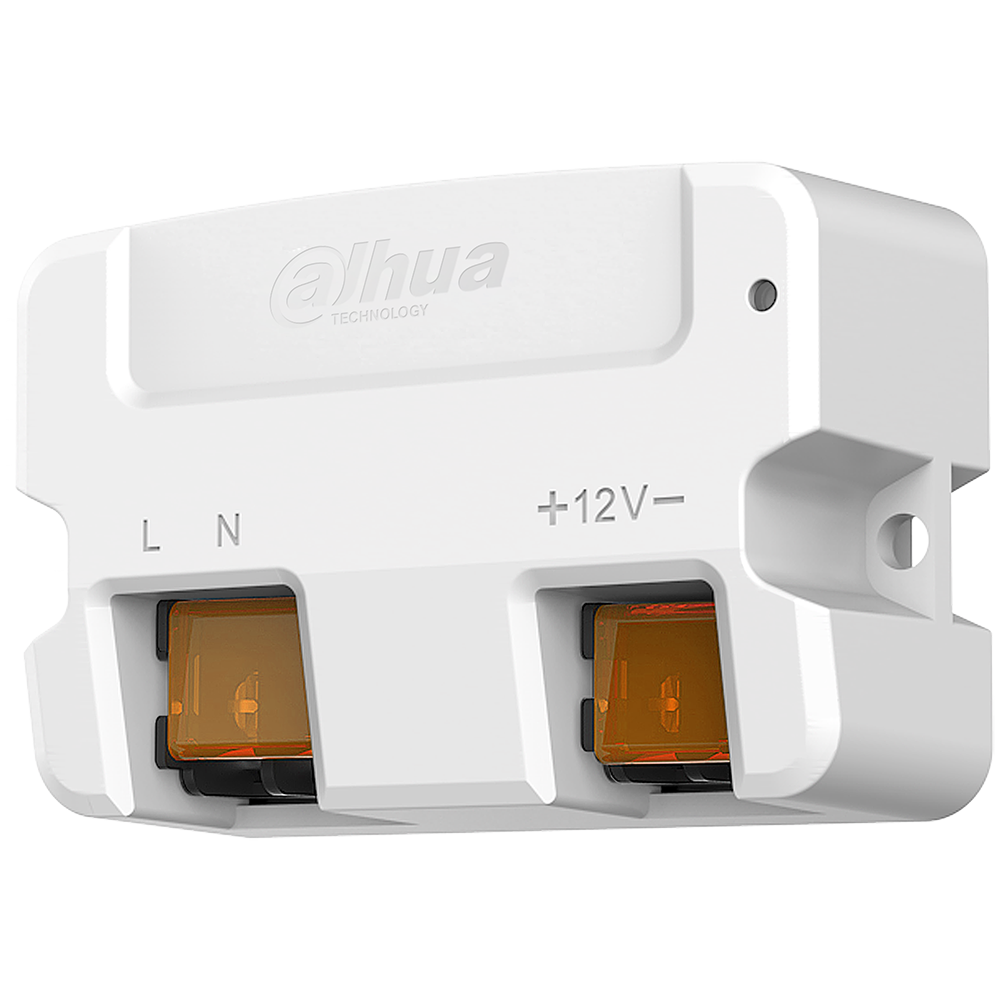

Dahua DH-PFM320D-015 12 VDC 1.5A Power Adapter

Dahua DH-PFM320D-015 Features

Electrical

• Input 100 VAC to 240 VAC, 50/60 Hz, 0.6 A
• Output Voltage 12 VDC (+7%, –3%)
• Output Current 1.5 A at +70° C (158° F)

Protection

• Protections Surge, Over-temperature, Over-current,
• Voltage Load
• ESD EN61000-4-2, ±6 kV Contact; ±8 kV Air
• Surge EN61000-4-5
• Combination Wave Common Mode: ±4 kV (12 Ω); Differential Mode: ±2 kV (2 Ω)

Environmental

• Operating Temperature –30° C to +70° F (–22° F to 158° F)
• Operating Humidity 5% to 95%, Relative

Physical Properties

• Weight 95.0 g (0.21 lb)
• Dimensions (L x W x H) 77.30 mm x 51.90 mm x 30.0 mm (3.04 in. x 2.04 in. x 1.18 in.)
• Installation Mode Plane Installation, can be installed in junction boxes and wall brackets (PFB302S and PFB210W)
• Color White
• Input Plug 2-pin (L/N)
• Output Plug 2-pin (+ 12V –)

Certifications

• CE, FCC
