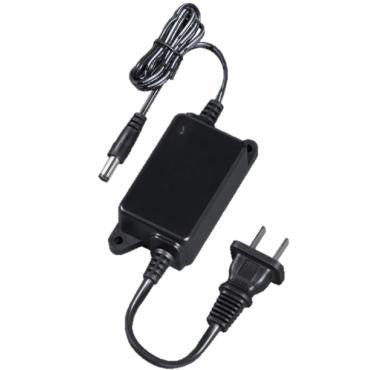

Dahua DH-PFM321 12V 1Amp DC Power Adapter

Replaced by the DH-PFM321D-US.

Dahua PFM321 Features

• Input 100 VAC to 240 VAC, 50/60Hz，0.5 A
• Output 12 VDC (ï¹¢7%, -3%), 1 A（±2%）
• Working temperature -30ºC to 70ºC (-22°F to 158°F)
• Working humidity < 90%
• Weight 150.0 g (0.33 lb)
• Dimension 84.0 mm × 41.0 mm × 26.0 mm (3.31 in. x 1.61 in. x 1.02 in.)
• Installation mode Plane installation
• Color Black
• Outgoing line length AC wire: 500 mm (19.69 in.), DC wire: 800 mm (31.50 in.)
• Certification CE, FCC, CEC
• Previously part number: ADS-12AM-12 12012EPCU
