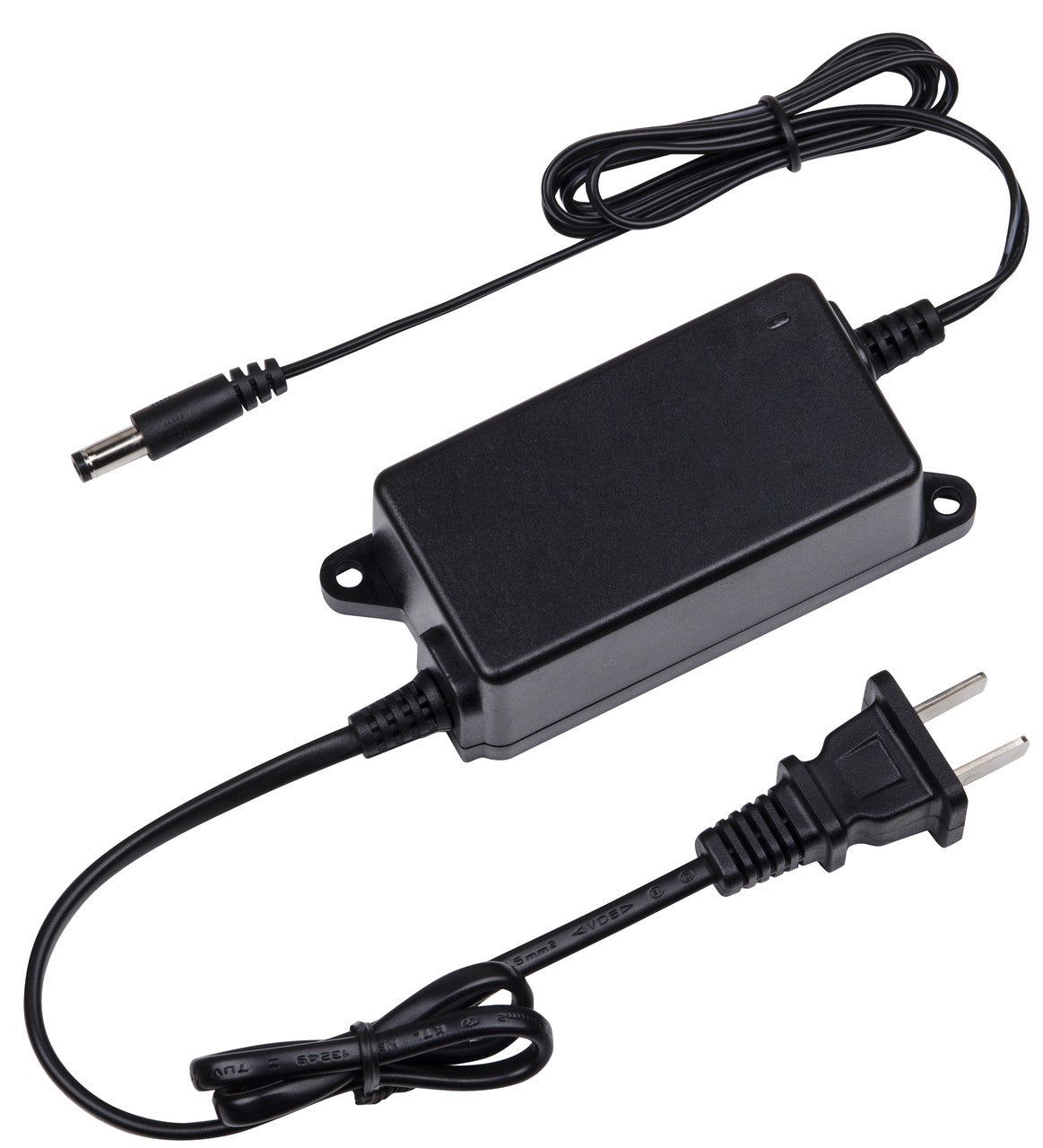

Dahua DH-PFM321D-US 12 VDC 1A Power Adapter
Dahua DH-PFM321D-US 12 VDC 1A Power Adapter

Dahua

Dahua DH-PFM321D-US 12 VDC 1A Power Adapter

$16.18
SKU: DH-PFM321D-US
Quantity:
Link to Manufacturer's Page

Contact

Dahua DH-PFM321D-US Features

Electrical

  • Input 100 VAC to 240 VAC, 50/60 Hz, 0.5 A
  • Output 12 VDC (+7%, –3%), 1 A (±2%)

Protection

  • Protections Surge, Over-temperature, Over-current,
  • Voltage Load
  • ESD EN61000-4-2, ±4 kV Contact; ±8 kV Air
  • Surge EN61000-4-5
  • Combination Wave Common Mode: ±4 kV (12 Ω); Differential Mode: ±2 kV (2 Ω)

Environmental

  • Operating Temperature –30 °C to +70° F (–22 °F to 158 °F)
  • Operating Humidity 95%, Relative

Physical Properties

  • Weight 150.0 g (0.33 lb)
  • Dimensions (L x W x H) 84.0 mm x 41.0 mm x 26.0 mm (3.31 in. x 1.61 in. x 1.02 in.)
  • Installation Mode Plane Installation
  • Color Black
  • Input Plug 2-pin North American Plug
  • Cord Lengths AC Cord: 500.0 mm (19.69 in.), DC Cord: 800.0 mm (31.50 in.)
  • DC Plug 5.50 mm x 2.10 mm x 12.0 mm (0.22 in. x 0.08 in. x 0.47 in.)

Certifications

  • CE, FCC, UL-VI
