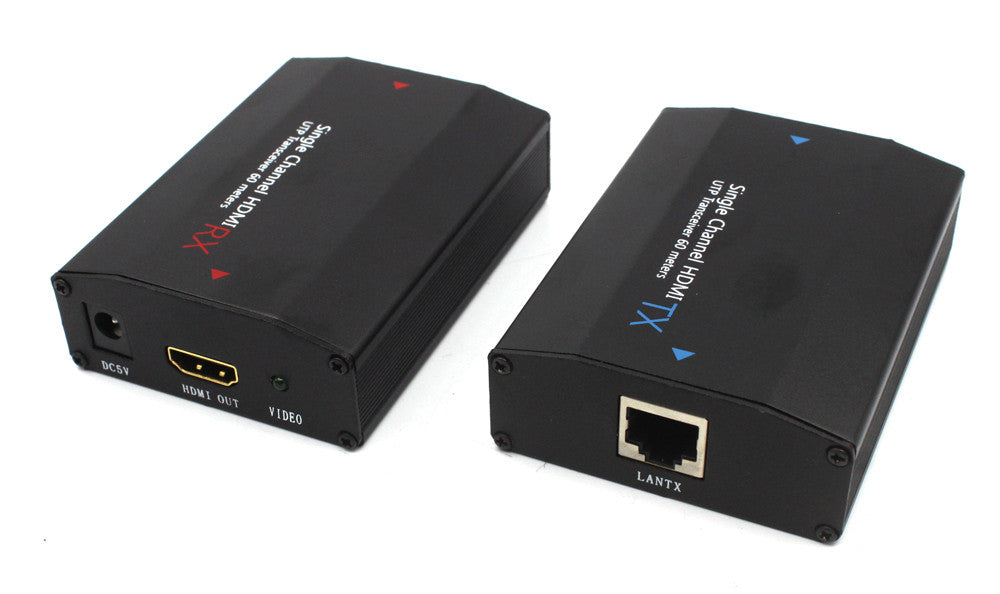

Dahua DH-PFM700 HDMI Extender

Replaced by the DH-PFM700-E

Dahua DH-PFM700 Features

Properties

• Transmission Signal 1channel HDMI
• Transmission Distance 60M(max)

Video Transmission Properties

• Video Signal Input Interface HDMI interface
• Video Input Interface HDMI interface
• Twisted-pair Video Transmission Port RJ45 port
• Input Voltage DC5V
• Power TX<3W, RX<3W
• HDCP Version Support HDCP1.2
• HDMI Version Support 1.3 and lower version

Resolution Output Signal

• Resolution 1080P/1080I/720P/576P/576I/480P/480I
• Output Voltage 0.5~1.5Vp-p

Protection

• ESD 1a contact discharge electricity level 3
• 1b air discharge electricity level 3
• Per: IEC61000-4-2 1995(GB/T 17626.5)
• Anti-thunder 1KV
• Per: IEC61000-4-5 1995(GB/T 17626.5)

Stability

• MTBF >5000H

Physical Properties

• Dimension(L*W*H) Transmitter: 88mm×64mm×25mm(port length included)
• Receiver: 88mm×64mm×25 mm
• Shell Aluminum
• Color Black
• N.W. Transmitter: 97g
• Receiver: 91g

Environmental

• Working Temperature 0-55ºC
• Storage Temperature -20~80ºC
• Humidity 0~95%(non-condensing)
