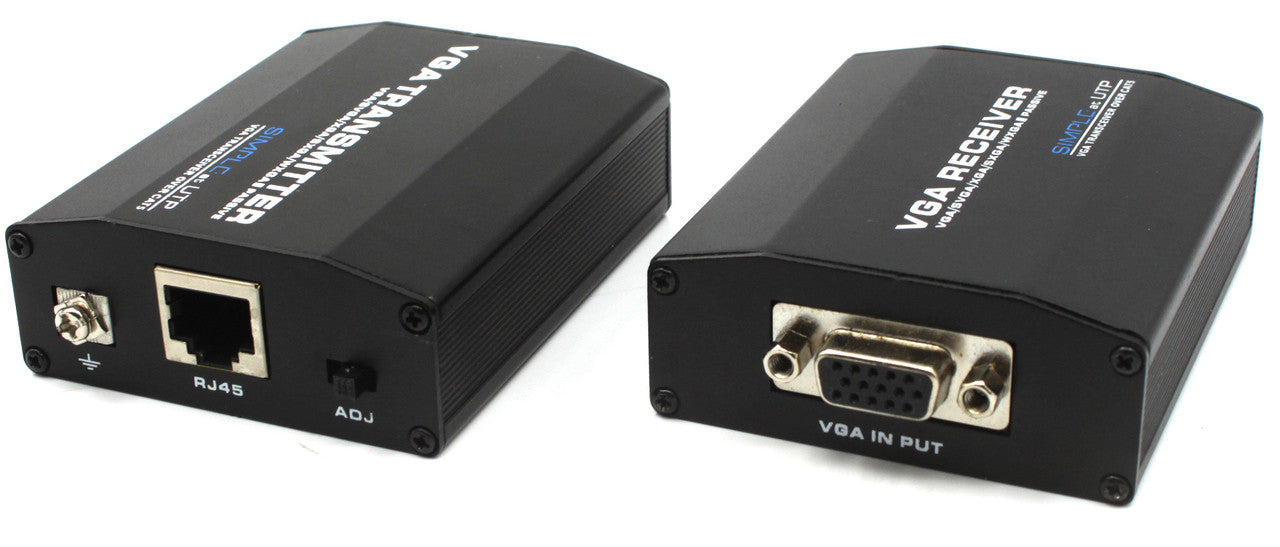

Dahua DH-PFM710 VGA Extender

Dahua DH-PFM710 Features

Properties

• Transmission Signal 1 channel
• Transmission Distance 75M(max)

Video Transmission Properties

• Video Signal Input Interface Female 15, VGA port
• Video Input Interface Female 15, VGA port
• Twisted-pair Video Transmission Port RJ45 port
• Video Signal Processing Bandwidth <120MHz(-3db)
• Synchronous Signal Bandwidth 1k-200kHz

Adjustment

• Transmitter 2 modes
• Receiver 3 modes

Protection

• ESD 1a contact discharge electricity level 3
• 1b air discharge electricity level 3
• Per: IEC61000-4-2 1995(GB/T 17626.5)
• Anti-thunder 1KV
• Per: IEC61000-4-5 1995(GB/T 17626.5)

Stability

• MTBF >5000H

Physical Properties

• Dimension(L*W*H) Transmitter: 85mm×64mm×28 mm （port length included）
• Receiver: 85mm×64mm×28 mm
• Shell Aluminum
• Color Black
• N.W. Transmitter: 111g
• Receiver: 110g

Environmental

• Working Temperature 0-55ºC
• Storage Temperature -20~80ºC
• Humidity 0~95%(non-condensing)
