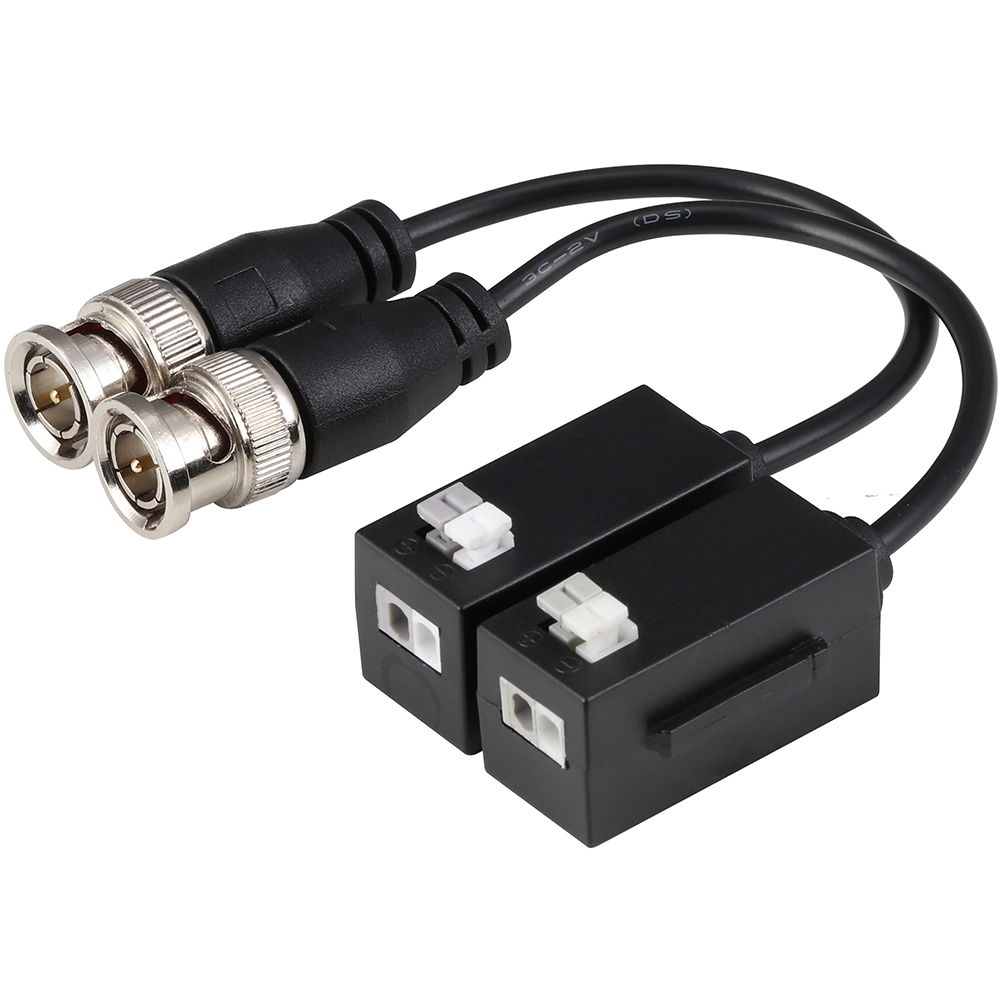

Dahua DH-PFM800-4K Features
Video
- Transmission Signal One (1) Channel
- Category Type UTP CAT5E/6
- Transmission Distance, maximum
- HDCVI, TVI, AHD: 720p: 400 m (1312.34 ft), 1080p: 250 m (820.21 ft), 4 MP, 6 MP, 8 MP: 200 m (656.17 ft)
Video Transmission Properties and Ports
- Coaxial Video Connector BNC-M
- Connection Way RJ45
- Compatible Format HDCVI, AHD, TVI, CVBS
- Resolution 720p, 1080p, 4 MP, 5 MP, 6 MP, 8 MP
Protection
- ESD - 1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per: IEC61000-4-2
- UTP Cable Connector 2 KV (different-mode), 4 KV (common-mode), per IEC1000-4-5
Impedance
- BNC Male 75 Ω
- UTP Cable 100
Physical Properties
- Dimensions 173.80 mm x 19.50 mm x 21.0 mm (6.84 in. x 0.77 in. x 0.80 in.)
- Shell ABS
- Color Black
- Net Weight 0.04 kg (0.09 lb)
Environmental
- Operating Temperature –30° C to +70° C (–22° F to 158° F)
- Storage Temperature –40° C to +80° C (–40° F to 176° F)
- Humidity < 95%, RH
