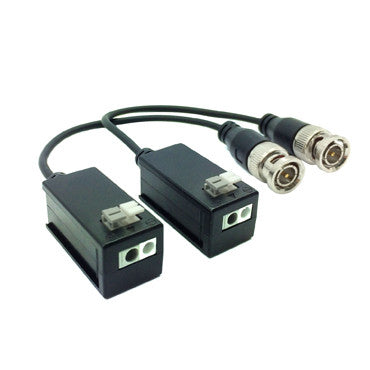

Dahua DH-PFM800-4MP Passive HDCVI Balun

Replaced by the DH-PFM800-4K

Dahua DH-PFM800-4MP Features

• Real-time Transmission over UTP CAT5E/6 Cable
• Passive Balun, No Need for Power Supply

Properties

• Transmission Signal One (1) Channel
• Transmission Distance, maximum (HDCVI)
  720p: 400 m (1312.34 ft)
  1080p: 250 m (820.21 ft)
  4 MP: 200 m (656.17 ft)
• Category Type UTP CAT 5E/6
• Video Transmission Properties And Port
• Coaxial Video Connector BNC-M
• Twisted-pair Video Connector Push-terminal
• Compatible Format HDCVI, AHD, TVI, CVBS
• Resolution 720p, 1080p, 4 MP
• Anti-interference ＞60 dB

Protection

• ESD
  1a contact discharge electricity level 3
  1b air discharge electricity level 3
  Per: IEC61000-4-2
• Coaxial Cable Connector 2 KV (common-code) per IEC1000-4-5
• UTP Cable Connector 2 KV (different-code), 4 KV (common-code), per IEC1000-4-5

Impedance

• BNC Male 75 Ω
• UTP Cable 100 Ω

Physical Properties

• Dimension(L x W x H) 173.0 mm x 21.0 mm x 20.0 mm (6.81 in. x 0.83 in. x0.79 in.)
• Shell ABS
• Color Black
• N.W. 25 g (0.06 lb)
• Stability
• MTBF ＞10000 h

Environmental

• Operating Temperature -10 ℃ to +55 ℃ (14 ℉ to 131 ℉)
• Storage Temperature -20 ℃ to +70 ℃(-4 ℉ to 158 ℉)
• Humidity 0 to 95% (non-condensing)
