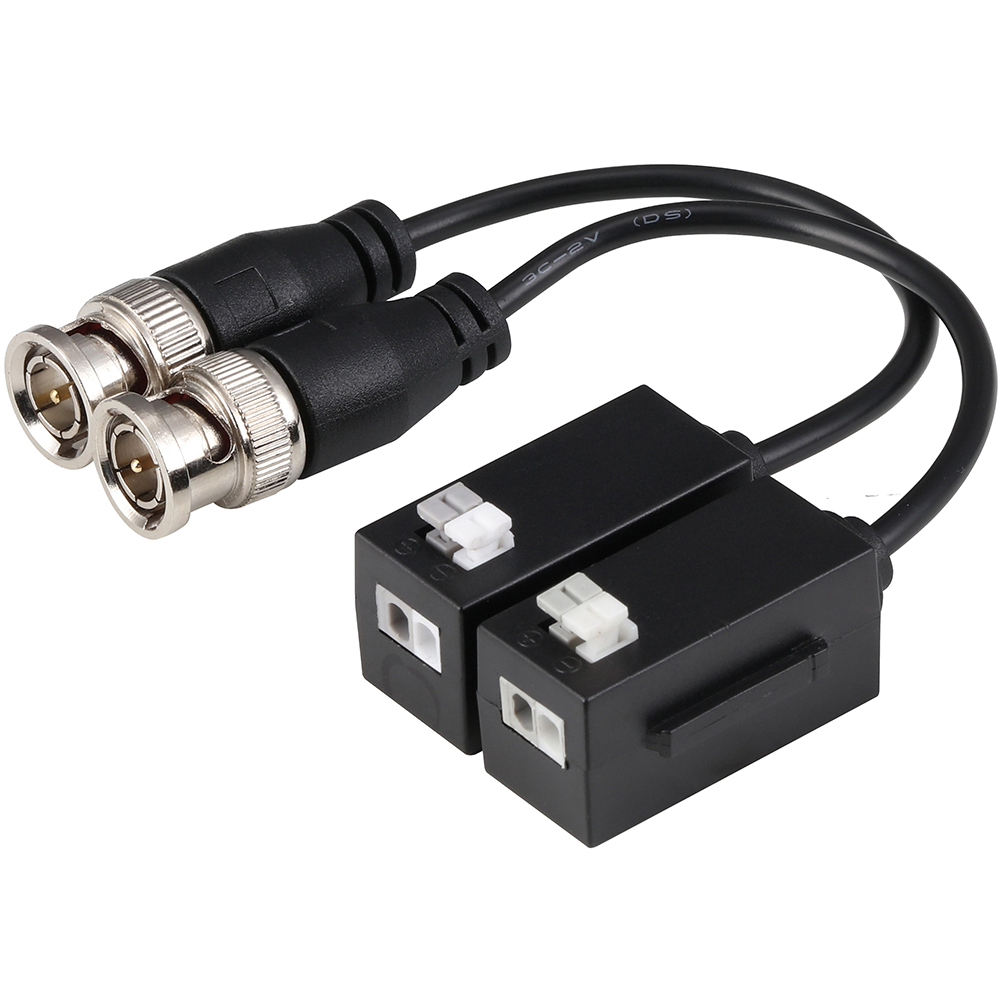

Dahua DH-PFM800-E Passive HDCVI Balun

Features

General

• One (1) Channel Balun
• Real-time Transmission over UTP CAT 5E/6 Cable
• External Power Supply not Required

Video

• Transmission Signal One (1) ChannelL
• Transmission Distance, maximum HDCVI 720p: 400 m (1312.34 ft), 1080p: 250 m (820.21 ft)
• Category Type UTP CAT 5E/6

Video Transmission Properties and Ports

• Coaxial Video Connector BNC-M
• Twisted-pair Video Connector Push-terminal
• Compatible Format HDCVI, AHD, TVI, CVBS
• Resolution 720p, 1080p
• Anti-interference > 60 dB

Protection

• ESD 1a contact discharge electricity level 3, 1b air discharge electricity level 3, Per: IEC61000-4-2
• Coaxial Cable Connector 2 KV (common-code) per IEC1000-4-5
• UTP Cable Connector 2 KV (different-code), 4 KV (common-code), per IEC1000-4-5

Impedance

• BNC Male 75 Ω
• UTP Cable 100 Ω

Physical Properties

• Dimensions 180.0 mm x 19.0 mm x 16.0 mm (7.09 in. x 0.75 in. x 0.63 in.)
• Shell ABS
• Color Black
• Net Weight 0.042 kg (0.09 lb)

Stability

• MTBF > 10000 h

Environmental

• Operating Temperature –10 °C to +55 °C (14 °F to 131 °F)
• Storage Temperature –20 °C to +70 °C (–4 °F to 158 °F)
• Humidity 0 to 95%, non-condensing
