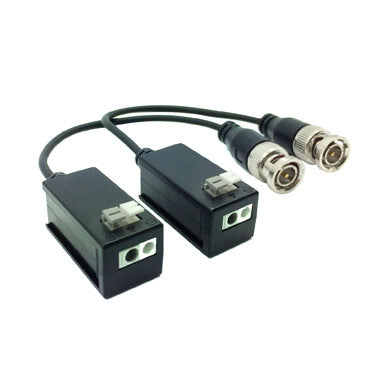

Dahua DH-PFM800 Features
Properties
- Transmission Signal 1 channel
- Transmission Distance 720P: 400M (max)
- 1080P: 250M (max)
- Category Type UTP CAT 5E/6 (R＜10Ω/100M)
Video Transmission Properties And Port
- Coaxial Video Connector BNC-M
- Twisted-pair Video Connector Push-terminal
- Compatible Format HDCVI
- Resolution 720P/1080P
- Anti-interference ＞60db
Protection
- ESD 1a contact discharge electricity level 3
- 1b air discharge electricity level 3
- Per:IEC61000-4-2
- Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
- UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
- BNC Male 75 ohms
- UTP Cable 100 ohms
Physical Properties
- Dimension(L*W*H) 53mm*20mm*17mm
- Shell ABS
- Color Black
- N.W. 25G
Stability
- MTBF ＞10000H
Environmental
- Operating Temperature -10ºC~55ºC
- Storage Temperature -20ºC~70ºC
- Humidity 0~95%(non-condensing)
