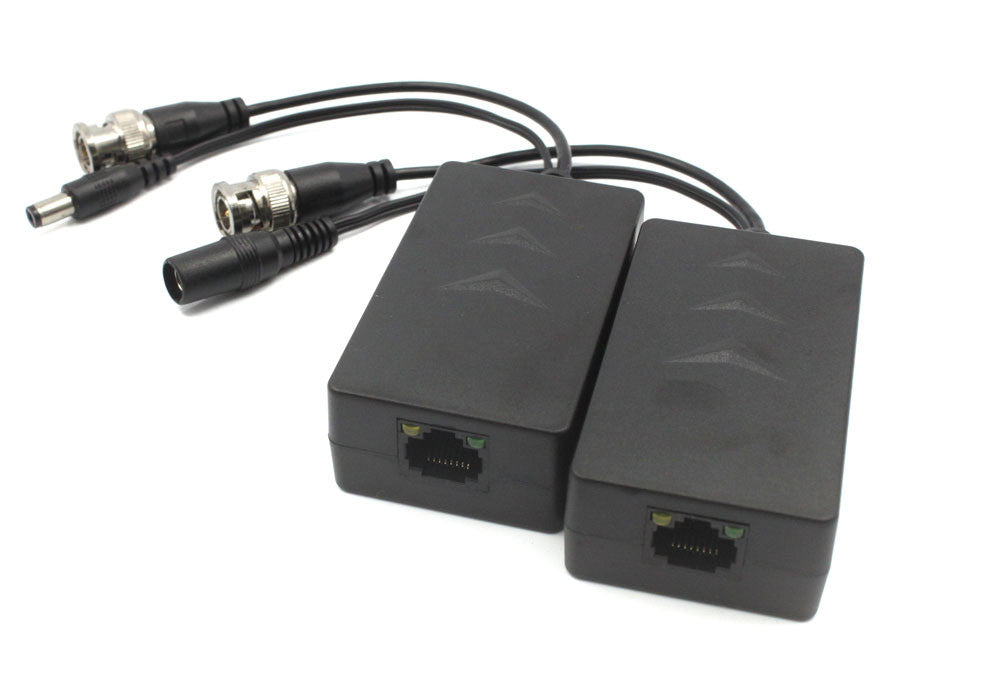

Dahua DH-PFM801 Features
Properties
- Transmission Signal 1 channel HDCVI
- Transmission Distance HDCVI: 720P, 400M(max); 1080P, 200M(max)
Power Supply, Input Voltage, Distance Output Power
- DC24 0-100M DC12V 8W
- 100-200M DC12V 6W
- 200-300M DC12V 3W
- DC36 0-300M DC12V 8W
- Category Type UTP CAT5E/6
Video Transmission Properties
- Coaxial Video Connector BNC-M
- Connection Way RJ45
- Compatible Format HDCVI/TVI/AHD
- Resolution 720P/1080P
- Anti-interference >60db
Protection
- ESD 1a contact discharge electricity level 3
- 1b air discharge electricity level 3
- Per: IEC61000-4-2
- Coaxial Cable Connector 2KV(common-code)
- Per: IEC61000-4-5
- UTP Cable Connector 2KV(different-code), 4KV(common-code)
- Per: IEC61000-4-5
Impedance
- BNC Male 75 ohms
- UTP Cable 100 ohms
Physical Properties
- Dimension(L*W*H) 72.6mm*42.5mm*24.5mm
- Shell ABS
- Color Black
- N.W. 66.4g/57.4g
Stability
- MTBF >10000H
Environmental
- Operating Temperature -10ºC~55ºC
- Storage Temperature -20ºC~70ºC
- Humidity 0~95%(non-condensing)
