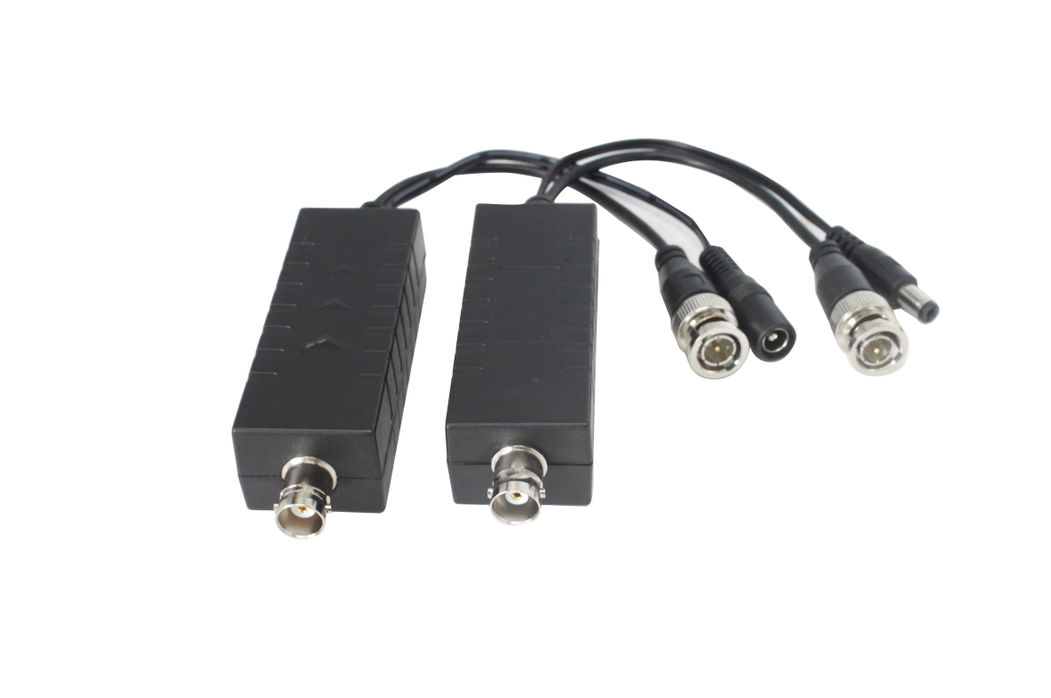

Dahua DH-PFM810 Power Over Coax Transceiver

Dahua DH-PFM810 Features

• Power supply: Input voltage DC24-36V, can provide DC12V 9W(max) power supply to remote cameras, simplify engineering wiring.
• Transmission effect: Real-time transmission video, no delay, strong anti-interference.
• Transmission distance: 400m (max).
• Main functions: Use single coaxial cable real-time transmit 1-ch HD video signal and 1-ch DC power.
• Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.

Properties

• Transmission Signal 1 channel HDCVI/HDTVI/AHD/CVBS
• Transmission Distance 720P/1080P: 400m(max)
• Power Supply: See Datasheet for Power Supply Table
• Category Type Coax 75-5(RG6)/75-4(RG59)/75-3

Video Transmission Properties

• Coaxial Video Connector BNC-M
• Connection Way BNC
• Compatible Format HDCVI/HDTVI/AHD/CVBS
• Resolution 720P/1080P
• Anti-interference >60db

Protection

• ESD
  1a contact discharge electricity level 3
  1b air discharge electricity level 3
  Per: IEC61000-4-2
• Coaxial Cable Connector
  2KV(common-code)
  Per: IEC61000-4-5
• UTP Cable Connector
  2KV(different-code), 4KV(common-code)
  Per: IEC61000-4-5

Impedance

• Coax 75 ohms
• Physical Properties
• Dimension(L*W*H) 78mm*29mm*22mm
• Shell ABS
• Color Black
• N.W. 153g
• Stability
• MTBF >10000H
• Environmental
• Operating Temperature -10~55℃
• Storage Temperature -20~70℃
• Humidity 0~95%(non-condensing)
