Dahua DH-PFM900

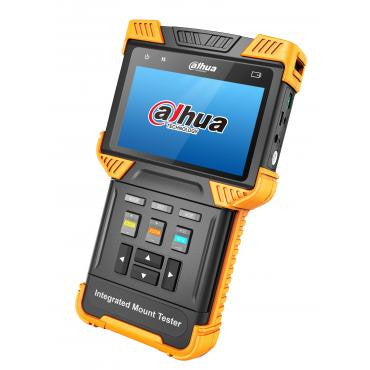

Dahua DH-PFM900 Integrated Mount Tester

Dahua

Dahua DH-PFM900 Integrated Mount Tester

$471.00
SKU: DH-PFM900
Quantity:
Link to Manufacturer's Page

Contact

Replaced by the DH-PFM905.

Dahua DH-PFM900 Features

Physical Port

  • Network Port 2*10/100/1000M RJ45 port, support switch mode
  • Function Port 2*BNC port (Video IN and Video OUT), 1*RS485, 1*Audio In, 1*USB, 1*Reset

IPC Test

  • Protocol ONVIF 2.4.1, RTSP, RTP
  • Ethernet Test 10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test
  • IP Configuration static IP/ DHCP client/ DHCP server
  • IPC Test Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(recording original data stream)

HDCVI & Analog Test

  • Format NTSC, PAL
  • Resolution D1, 720P, 1080P
  • Signal Level 1Vpp
  • Camera Test Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(H.264)
  • HDCVI OSD Camera configuration

PTZ Control

  • Protocol More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc.
  • Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Detection

  • TDR detection 0~150m net cable detection, resolution 2m
  • POE test PD test
  • PSE test
  • Network Analyze Sniff, list subnet, ping
  • Analog Video Generator Generate PAL/ NTSC video signal of various test pattern
  • Record Playback Support local playback

System Specification

  • Screen 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjustable
  • Operation Method Power key, 12 control keys, QWERTY flip keyboard with 45 keys
  • Auto Power Off Disable/ 5~60 minutes
  • Keyboard Tone Enable/ Disable
  • Upgrade Support online upgrade

Power

  • Power Input POE port by POE midspan
  • POE Midspan Input AC100~230V 50~60Hz, output 48V/15w
  • Battery Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh
  • Power Output POE (802.3af, 802.3at)
  • DC12V 2A
  • Time Charging time 3~4 hours, working time 10 hours

Other

  • Internal Storage 8GB flash
  • LED Light 2*35lm LED light
  • Working Temperature -10ºC~+55ºC
  • Working Humidity 30%~90%
  • Dimensions 190x113x37mm
  • Weight 0.5Kg
