Replaced by the PFM900-E

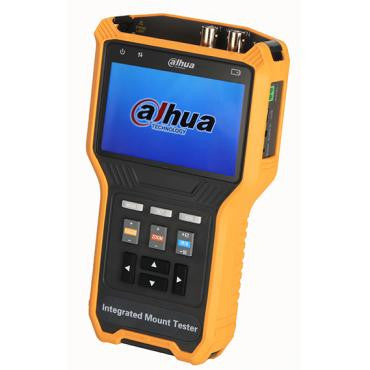

Dahua DH-PFM905 Features
Video
- Formats HDCVI, AHD, HDTVI, CVBS
- Resolution 1080p at 30 fps, 720p at 30/60 fps
- Signal Level 1 Vpp
- Camera Test Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video (H.264)
- On-screen Display Supports camera configuration, multi-language interface
Interface
- Video Two (2) BNC: One Video In, One Video Out
- RS485 One (1), for PTZ Control
- Audio One (1) Audio In
- Reset One (1)
- Power Output: One (1) 12 VDC, 1 A
PTZ Control
- Protocol More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan
- Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200 bps
Playback
- Video Playback Single-frame playback, digital zoom, full-screen playback, fast rewinding and fast-forwarding, file deletion, file fast switching
- Screenshot Playback Image zoom, full-screen demonstration, file deletion and the around file fast switching
Storage
- Port One (1) Micro USB
- Capacity 8 GB, internal memory
System
- Screen 4.0-in. TFT screen, 800 x 480 resolution, 16.7M colors,
- backlight brightness adjustable
- Power Off Automatic, 5 to 60 minutes
- Upgrade Online upgrade via USB connection
- Flashlight Two (2) 35 lm LEDs
Electrical
- Charger Input: 100 to 240 VAC, 50/60 Hz
- Power Consumption 10.4 W
- Battery Standard dischargeable 7.4 V Lithium battery,
- working time approximately five (5) hours
Environmental
- Operating Conditions -10° C to +55° C (14° F to +131° F), 30 to 90% RH
- Certifications Conforms to CE and FCC standards
Construction
- Casing Plastic
- Dimensions 175.0 mm x 113.0 mm x 37.0 mm (6.89 in. x 4.45 in. x 1.46 in.)
- Net Weight 0.38 kg (0.85 lb)
- Gross Weight 1.20 kg (2.65 lb)
