Dahua DH-PFS3009-8ET-96 8-Port PoE Switch (Hi-POE) with 2 Enthernet uplink ports Network Switch
Dahua DH-PFS3009-8ET-96 Top View

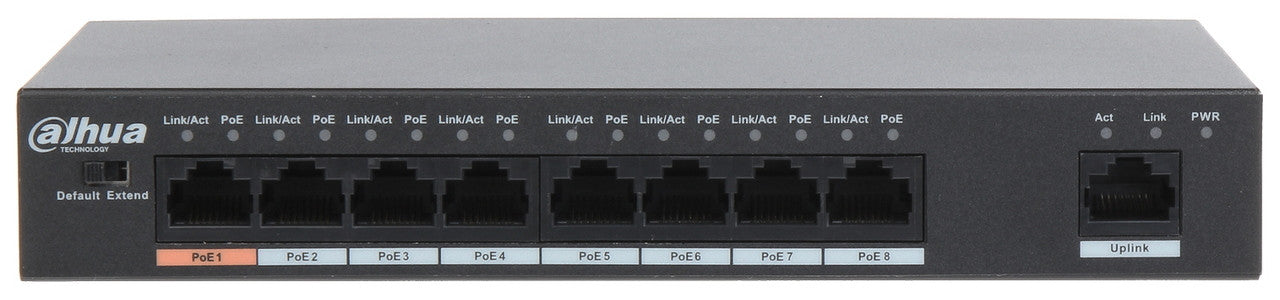

Dahua DH-PFS3009-8ET-96 Front View
Dahua DH-PFS3009-8ET-96 8-Port PoE Switch (Hi-POE) with 2 Enthernet uplink ports Network Switch

Dahua

Dahua DH-PFS3009-8ET-96 8-Port PoE Switch (Hi-POE) with 2 Enthernet uplink ports Network Switch

$162.00
Discontinued
SKU: DH-PFS3009-8ET-96
Link to Manufacturer's Page

Contact

Dahua DH-PFS3009-8ET-96 Features

  • Model DH-PFS3009-8ET-96
  • Ethernet Port: 1*10/100 Base-T, 8*10/100 Base-T (PoE power supply)
  • PoE Power Consumption: Port1≤60W, Port2-8≤30W, Total≤96W
  • PoE Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
  • Switching Capacity: 1.8Gbps
  • Packet Forwarding: Rate 1.34Mpps
  • Packet Buffer Memory: 768K
  • MAC Table Size: 2K
  • Flow Control: Enable by default
  • Application Humidity: 10%~90%
  • Power: DC48~57V power adapter
  • Lightning Protection: Common Mode 2KV, Differential Mode 0.5KV
  • Working Temperature -10°C~+55°C
  • Weight 0.48kg
  • Dimension(W×D×H) 190mm×100mm×30mm

Dahua DH-PFS3009-8ET-96 Overview

DH-PFS3009-8P-96 is an 8-port fast Ethernet switch, which supports 250 meters long distance PoE transmission. It provides 8*10/100Mbps PoE ports and 1*100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.
