Dahua DH-PFS3110-8P-96 Features
- Ethernet Ports - One (1) 10/100/1000 Base-T Port, One (1) 1000 Base-X Port, Eight (8) 10/100 Base-T Ports (PoE Power Supply)
- PoE Power Consumption - Each port: ≤ 30 W, Total: ≤ 96 W
- PoE Protocol - PoE (IEEE802.3af), PoE+ (IEEE802.3at)
- Switching Capacity 7.6 Gbps
- Packet Forwarding Rate 4.17 Mpps
- Packet Buffer Memory 1 MB
- MAC Table Size 8K
- Flow Control Enable by default
- Power Requirements 53 VDC Power Adapter (included)
- Operating Temperature -30 °C to 65 °C (-22 °F to 149 °F)
- Application Humidity 10% to 90%
- Lightning Protection Common Mode: 2 KV
- Differential Mode: 1 KV
- Dimensions (W x D x H) 150.0 mm x 100.0 mm x 42.0 mm
- (5.91 in. x 3.94 in. x 1.65 in.)
- Weight 0.54 kg (1.19 lb)

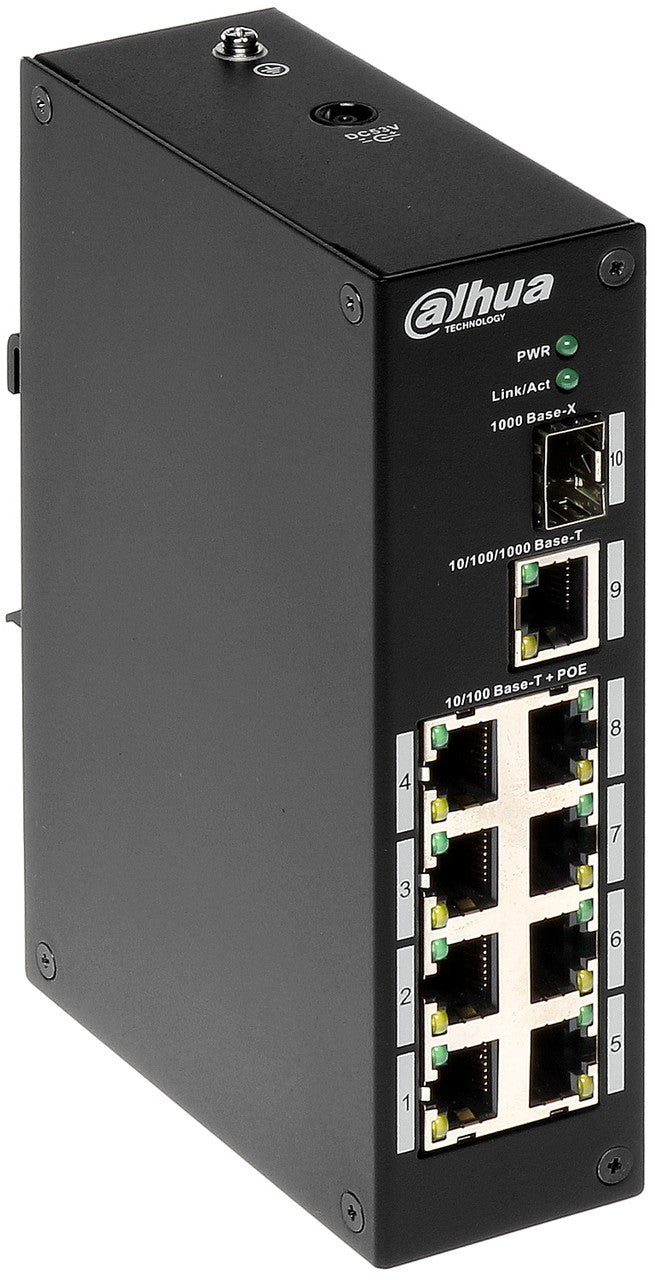

Dahua DH-PFS3110-8P-96 Overview
The DH-PFS3110-8P-96 is an 8-port industrial PoE Ethernet switch, which supports the IEEE802.3 af/at standards. The switch is designed for extreme temperature environments and achieves a Lightning ProtecƟ on raƟ ng of 3. The unit is rigorously tested using Accelerated Life TesƟ ng to ensure high-reliability and a long operaƟ ng life.
