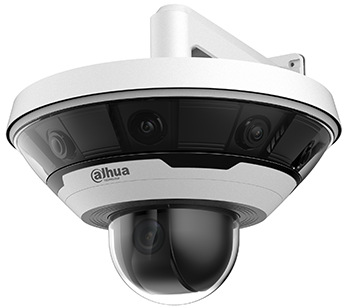

Dahua DH-PSD81602N-A360 8x2MP 360° Multi-sensor Panoramic + 2MP PTZ Network Camera

Replaced by the DH-PSDW81642M-A360

Dahua DH-PSD81602N-A360 Features

Panoramic Camera

• Image Sensor Eight (8) 1/1.9-in. 2 MP CMOS Sensors
• Effective Pixels 2 x 4096(H) x 1800(V)
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual: 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.005 lux at F2.2 (1/3 s, 30 IRE), Color: 0.03 lux at F2.2 (1/30 s, 30 IRE), B/W: 0.003 lux at F2.2 (1/3 s, 30 IRE), B/W: 0.02 lux at F2.2 (/30 s, 30 IRE)
• S/N Ratio More than 50 dB

Panoramic Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 5 mm
• Maximum Aperture F2.2
• Angle of View Horizontal: 360°, Vertical: 80°

PTZ Camera

• Image Sensor One (1) 1/1.9-in. 2 MP CMOS Sensor
• Effective Pixels 1920(H) x 1080(V)
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual: 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.002 lux at F1.5 (1/3 s, 30 IRE), Color: 0.01 lux at F1.5 (1/30 s, 30 IRE), B/W: 0.001 lux at F1.5 (1/3 s, 30 IRE), B/W: 0.008 lux at F1.5 (/30 s, 30 IRE)
• S/N Ratio More than 50 dB

PTZ Lens

• Lens Type Motorized / Auto Iris (HALL)
• Mount Type Board-in
• Focal Length 5.5 mm to 206.0 mm
• Maximum Aperture F1.5
• Angle of View Horizontal: 65.8° to 2.0°
• Optical Zoom 37x
• Focus Control Motorized

PTZ

• Pan/Tilt Range Pan: 0˚ to 360˚ endless, Tilt: -20˚ to 90˚
• Auto flip: 180˚
• Manual Speed Control Pan: 0.1° /s to 240° /s
• Tilt: 0.1° /s to 120° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented Focal Length and Speed Adaptation
• Power-up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Output Channels
• Three (3) Channels: Two (2) Channels for Stitched Panoramic Video, One (1) Channel for PTZ Video
• Resolution
• Panoramic Camera 2 x 4096 x 1800, 2 x 3840 x 1680, 2 x 2880 x 1264, 2 x 1920 x 832, 2 x 1280 x 560, 2 x 1024 x 452
• PTZ Camera 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate
• Main Stream Panoramic Camera: 2 x 4096 x 1800 at 25 fps
• PTZ Camera: 1080p at 60 fps
• Sub Stream 1 Panoramic Camera: 2 x 1024 x 452 at 30 fps
• PTZ Camera: D1 at 60 fps
• Sub Stream 2 Panoramic Camera: 2 x 1920 x 832 at 30 fps
• PTZ Camera: 1080p at 60 fps
• Bit Rate Control CBR, VBR
• Bit Rate
• Panoramic H.265: 2 x 14 Kbps to 8192 Kbps
• H.264: 2 x 24 Kbps to 8192 Kbps
• PTZ H.265: 4 Kbps to 8192 Kbps
• H.264: 8 Kbps to 7168 Kbps

Image Settings

• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB)
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zone, Rectangle)
• Region of Interest Off, On (4 Zone)
• Defog Support, PTZ camera only
• Digital Zoom 16x
• Privacy
• Masking
• Panoramic Off, On (4 Area, Rectangle)
• PTZ Off, On (24 Area, Rectangle)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet One (1) RJ-45 Port (100/1000 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• IP Address Default Address: 192.168.1.108 (Camera uses a single IP address for all sensors)
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast, Multicast
• Maximum User Access 10 Users / 20 Users
• Edge Storage NAS, Local PC for instant recording, Micro SD Card, maximum 128 GB
• Web Viewer IE, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android

Certifications

• Safety EN 60950:2000, UL60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Interface

• Video One (1) Port, for PTZ camera only
• Audio Input: Two (2) Channels, Output: One (1) Channel
• RS485 One (1) Port, for PTZ control
• Alarm Input: Seven (7) Channels (5 VDC, 5 mA), Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)

Electrical

• Power Supply 36 VDC
• Power Consumption < 120 W

Environmental

• Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 95% RH
• Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø449.50 mm x 342.50 mm (ø17.70 in. x 13.48 in.)
• Net Weight 16.0 kg (35.27 lb)
• Gross Weight 25.0 kg (55.0 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Camera loses or changes focus drastically.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
