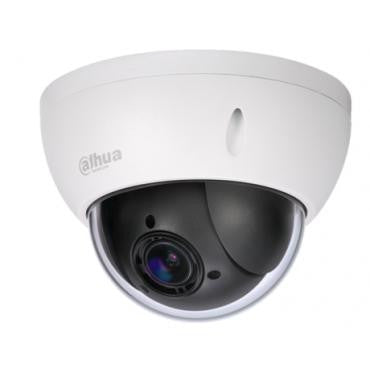

Dahua DH-SD22A204IN-GC 2MP 4x HDCVI Mini PTZ Dome Camera

Dahua DH-SD22A204IN-GC Features

Camera

• Image Sensor 1/2.7" CMOS
• Effective Pixels 1920 H x 1080 V
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)
• S/N Ratio More than 55dB
• IR LEDs N/A

Lens

• Lens Type Motorized/ Auto Iris
• Mount Type Board-in
• Focal Length 2.7mm~11mm (4x Optical zoom)
• Max Aperture F1.6 ~ F3.0
• Angle of View H: 112.5°～39°
• Focus Control Auto / Manual
• Close Focus Distance 100mm~ 1000mm

PTZ

• Pan/Tilt Range Pan: 0° ~ 355° endless; Tilt: 0° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
• Preset Speed Pan: 100° /s; Tilt: 60° /s
• Presets 300
• PTZ Mode 8 Tour, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Resolution 30fps@1080p, 30/60fps@720p
• Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / DWDR
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Digital Zoom 16x
• Flip 0°/180°
• Privacy Masking Up to 24 areas

Certifications

• FCC (SEFD1505003-A), UL (E234884-A67-UL)

Interface

• Audio Interface N/A
• RS485 1
• Alarm N/A

Electrical

• Power Supply DC12V
• Power Consumption Max. 10W

Environmental

• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• *Start up should be done at above -35°C (-31°F)
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection & Vandal Resistance IP66, IK10

Construction

• Casing Metal
• Dimensions Φ122 (mm) x 89 (mm) (Φ4.80" x 3.50")
• Net Weight 1.42 kg (3.13 lbs)
• Gross Weight 0.6kg (1.32lbs)
