Discontinued

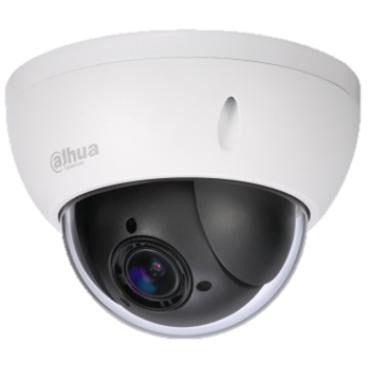

Dahua DH-SD22A204TN-GNI Features
Camera
- Image Sensor 1/2.7” CMOS
- Effective Pixels 1920(H) x 1080(V), 2Megapixels
- Scanning System Progressive
- Electronic Shutter Speed 1/1 ~ 1/30,000s
- Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
- S/N Ratio More than 50dB
Camera Features
- Day/Night Auto(ICR) / Color / B/W
- Backlight Compensation BLC / HLC / WDR
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto / Manual
- Noise Reduction Ultra DNR (2D/3D)
- Privacy Masking Up to 24 areas
- Digital Zoom 16x
Lens
- Focal Length 2.7mm~11mm(4x Optical zoom)
- Max Aperture F1.6~ F2.8
- Focus Control Auto / Manual
- Angle of View H: 93.5° ~ 30.24°
- Close Focus Distance 100mm~ 1000mm
PTZ
- Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180°
- Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
- Preset Speed Pan: 100° /s; Tilt: 60° /s
- Preset 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Setup Human-oriented focal length/ speed adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Video
- Compression H.264 / MJPEG
- Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240)
- Frame Rate Main Stream 1080P/ D1 (1 ~ 30fps), 720P(1~60fps)
- Sub Stream 1 D1/CIF(1 ~ 30fps)
- Sub Stream 2 720P/ D1/ CIF (1 ~ 25/30fps)
- Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Intelligent Function
- IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection Support
Network
- Ethernet RJ-45 (10/100Base-T)
- Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- ONVIF ONVIF Profile S
- Max. User Access 20 users
- Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
- Memory Slot Micro SD, Max 128GB
General
- Power Supply DC12V, POE
- Power Consumption 10W
- Working Environment -30ºC ~ 60ºC / Less than 90% RH
- Ingress Protection IP66 & IK10
- Dimensions Φ122 (mm) x 89 (mm)
- Weight 0.6kg
