Dahua DH-SD22A204TN-GNI-W

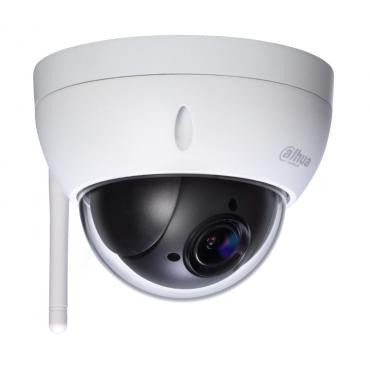

Dahua DH-SD22A204TN-GNI-W 2MP WiFi 4x Mini PTZ Dome Network Camera

Dahua

Dahua DH-SD22A204TN-GNI-W 2MP WiFi 4x Mini PTZ Dome Network Camera

$396.00
Discontinued
SKU: DH-SD22A204TN-GNI-W Lite
Link to Manufacturer's Page

Contact

Replaced by the 22204UENI-W

Dahua DH-SD22A204TN-GNI-W Features

Camera

  • Image Sensor 1/2.7" Exmor CMOS
  • Effective Pixels 1944 H x 1092 V
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 ~ 1/30,000s
  • Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)
  • S/N Ratio More than 50dB

Lens

  • Lens Type Motorized/ Auto Iris
  • Mount Type Board-in
  • Focal Length 2.7mm~11mm (4x Optical zoom)
  • Max Aperture F1.6 ~ F2.8
  • Angle of View H: 112.5° ~ 39°
  • Focus Control Auto / Manual
  • Close Focus Distance 100mm~ 1000mm

PTZ

  • Pan/Tilt Range Pan: 0° ~ 355° endless; Tilt: 0° ~ 90°, auto flip 180°
  • Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
  • Preset Speed Pan: 100° /s; Tilt: 60° /s
  • Presets 300 (DH-SD)
  • PTZ Mode 8 Tour, Auto Scan
  • Speed Setup Human-oriented focal length/ speed adaptation
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
  • Protocol DH-SD, Pelco-P/D (Auto recognition)

Intelligence

  • IVS (optional) Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection

Video

  • Compression H.264 / MJPEG
  • Streaming Capability 3 Streams
  • Resolution 1080p (1920×1080) / 720p (1280×720) / D1 (704×576/704×480) / CIF (352×288/352×240)
  • Main Stream 1080p / D1 (1 ~ 30fps), 720p (1~60fps), Sub Stream1 D1/CIF (1 ~ 30fps)
  • Sub Stream2 720P/D1/CIF (1 ~ 30fps)
  • Bit Rate Control CBR / VBR
  • Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / WDR (120dB)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Digital Zoom 16x
  • Flip 0°/180°
  • Privacy Masking Up to 24 areas

Intelligent Function

  • IVS Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, Face Detection Support

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Wi-Fi (IEEE802.11b/g/n), 50m (open field)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming method Unicast / Multicast
  • Max. User Access 20
  • Edge Storage Micro SD (128GB) Memory Status Display (Normal / Error/ Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for Instant Recording, Micro SD, Max 128GB
  • Web Viewer IE10….
  • Management Software Smart PSS, DSS
  • Smart Phone Android, Ios
  • Certifications FCC (SEFD1505003-A), UL (E234884-A67-UL)

Electrical

  • Power Supply DC12V, 1.5A
  • Power Consumption Max. 10W
  • Power supply not included, we recommend the DH-PFM320D-015

Environmental

  • Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
  • Ingress Protection & Vandal Resistance IP66, IK10

Construction

  • Casing Metal+Plastic
  • Dimensions Φ122 mm x 89 mm (Φ4.80" x 3.50")
  • Net Weight 0.5kg (1.10lbs)
  • Gross Weight 0.6kg (1.32lbs)
