Dahua DH-SD29A204SN-GN

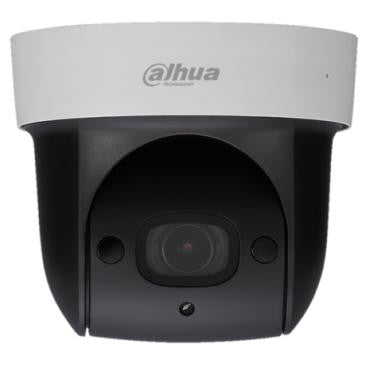

Dahua DH-SD29A204SN-GN 2MP Mini IR PTZ Dome Network Camera

Dahua

Dahua DH-SD29A204SN-GN 2MP Mini IR PTZ Dome Network Camera

$914.00
Discontinued
SKU: DH-SD29A204SN-GNI Lite
Link to Manufacturer's Page

Contact

Discontinued; replaced by the DH-SD29A204SN-GNI.

Dahua DH-SD29A204SN-GN Features

Camera

  • Image Sensor 1/2.8” CMOS
  • Effective Pixels 1920(H) x 1080(V), 2Megapixels
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 ~ 1/30,000s
  • Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
  • S/N Ratio More than 50dB

Camera Features

  • Day/Night Auto(ICR) / Color / B/W
  • Backlight Compensation BLC / HLC / DWDR(Digital WDR)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Privacy Masking Up to 24 areas
  • Digital Zoom 16x

Lens

  • Focal Length 2.7mm~11mm(4x Optical zoom)
  • Max Aperture F1.6~ F2.8
  • Focus Control Auto / Manual
  • Angle of View H: 112.5° ~ 39°

PTZ

  • Pan/Tilt Range Pan: 0° ~ 360°limited;Tilt: 0° ~ 90°, auto flip 180°
  • Manual Control Speed Pan: 0.1° ~100° /s;Tilt: 0.1° ~60° /s
  • Preset Speed Pan:100° /s;Tilt: 60° /s
  • Preset 300
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan,Auto Scan
  • Speed Setup Human-oriented focal length/ speed adaptation
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
  • IR Distance 30m

Video

  • Compression H.264 / MJPEG
  • Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF (352×288/352×240)
  • Frame Rate Main Stream 1080P(1 ~30fps)/ 720P(1~60fps)
  • Sub Stream D1/CIF(1~30fps)
  • Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

Audio

  • Compression G.711a / G.711Mu(32kbps)/PCM(128kbps)
  • Interface Built-in Mic

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • ONVIF ONVIFProfile S
  • Max. User Access 20 users
  • Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

  • Memory Slot Micro SD, Max 64GB

General

  • Power Supply DC12V, POE
  • Power Consumption 10W, 13W(IR on)
  • Working Environment -30ºC ~ 60ºC / Less than 90% RH
  • Dimensions Φ132.7(mm) x 116.5 (mm)
  • Weight 0.95kg
