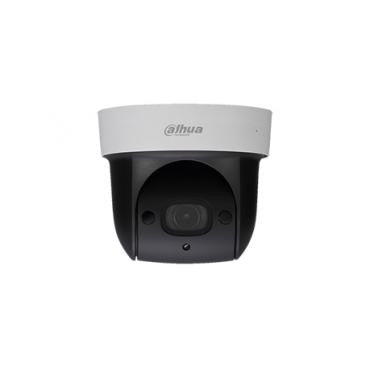

Dahua DH-SD29A204TN-GNI 2MP IR Mini PTZ Dome Network Camera

Discontinued; replaced by the DH-SD22A204TN-GNI.

Dahua DH-SD29A204TN-GNI Features

Camera

• Image Sensor 1/2.7" Exmor CMOS
• Effective Pixels 1944 H x 1092 V
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux (IR on)
• S/N Ratio More than 50dB
• IR Distance 30m(98ft)
• IR On/Off Control Auto / Manual
• IR LEDs 2

Lens

• Lens Type Motorized/ Auto Iris
• Mount Type Board-in
• Focal Length 2.7mm~11mm (4x Optical zoom)
• Max Aperture F1.6 ~ F2.8
• Angle of View H: 112.5° ~ 39°
• Focus Control Auto / Manual
• Close Focus Distance 100mm~ 1000mm

PTZ

• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
• Preset Speed Pan: 100° /s; Tilt: 60° /s
• Presets 300(DH-SD)
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Compression H.264 / MJPEG
• Streaming Capability 2 Streams
• Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240)
• Frame Rate Main Stream 1080P(1 ~ 30fps), 720P(1~60fps)
• Sub Stream D1/CIF(1 ~ 30fps)
• Bit Rate Control CBR / VBR
• Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 10240Kbps
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / WDR(120dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Motion Detetion Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Digital Zoom 16x
• Flip 0°/180°
• Privacy Masking Up to 24 areas

Audio

• Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
• Interface Built-in Mic

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF PSIA CGI
• Streaming method Unicast / Multicast
• Max. User Access 20
• Edge Storage Micro SD (128GB) Memory Status Display (Normal / Error/ Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for Instant Recording, Micro SD, Max 128GB
• Web Viewer IE 10, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System Android, IOS

Certifications

• FCC (SEFD1507103)
• UL (E234884-A110-UL)

Interface

• Audio Interface Built-in Mic

Electrical

• Power Supply DC12V, PoE (af Class 0)
• Power Consumption Max. 10W, 13W (IR on)

Environmental

• Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH *Start up should be done at above -35°C (-31°F)
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Construction

• Casing Metal+Plastic
• Dimensions Φ132.7 (mm) x 116.5 (mm) (Φ5.22"x4.59")
• Net Weight 0.6kg (1.32lbs)
• Gross Weight 0.95kg (2.09lbs)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.

Premium Features

• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
• Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
