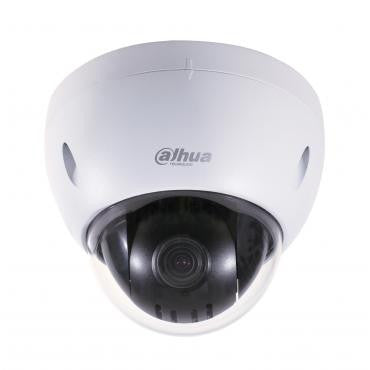

Dahua DH-SD32A203SN-HN 2MP Mini PTZ Dome Network Camera

Dahua DH-SD32A203SN-HN Features

Camera

• Image Sensor 1/2.8” Exmor CMOS
• Effective Pixels 1944(H) x 1092(V),2 Megapixels
• Scanning System Progressive
• Electronic Shutter Speed 1/1 - 1/30,000s
• Min. Illumination Color: 0.05 lux@F1.6, B/W:0.005 lux@F1.6
• S/N Ratio More than 50dB

Camera Features

• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / DWDR
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction 2D / 3D
• Privacy Masking Up to 24 areas
• Digital Zoom 16x

Lens

• Focal Length 3.0mm ~ 9.0mm(3x Optical zoom)
• Max Aperture F1.6 ~ F2.7
• Focus Control Auto / Manual
• Angle of View H: 98.4° ~ 29.7°
• Close Focus Distance 100mm ~1000mm

PTZ

• Pan/Tilt Range Pan: 0° ~ 360°;Tilt: 0° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~ 240°/s;Tilt: 0.1° ~160°/s
• Preset Speed Pan:240°/s;Tilt: 160°/s
• Preset 300
• PTZ Mode 5 Pattern, 8 Tour,5 Auto Scan, Auto Pan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period

Video

• Compression H.264 / MJPEG
• Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
• Frame Rate Main Stream 1080P/720P(1~30fps)
• Sub Stream D1/CIF(1~30fps)
• Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

• Compression G.711a / G.711u (32kbps) / PCM (128kbps)
• Interface 1/1 channel In/Out

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
• Compatibility ONVIF PSIA CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

• Memory Slot Micro SD, Max 64GB
• Alarm 2/1channel In/Out

General

• Power Supply DC12V, PoE(802.3af)
• Power Consumption 8W
• Working Environment -10ºC ~ 55ºC / Less than 95% RH
• Ingress Protection IP66
• Vandal Resistance IK10
• Dimensions Φ160(mm) x 133(mm)
• Weight 1.38kg
