Replaced by the 49225IC.

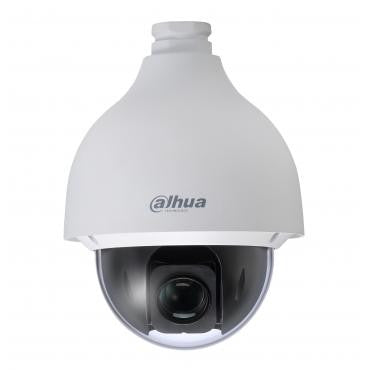

Dahua DH-SD40A212IN-HC Features
Camera
- Image Sensor 1/2.8" Exmor CMOS
- Effective Pixels 1944(H) x 1092(V), 2 Megapixels
- Horizontal Resolution ≥1000TVL
- Scanning System Progressive
- Electronic Shutter Speed 1/1s ~1/30,000s
- Min. Illumination Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6
- S/N Ratio More than 55dB
- Resolution 1080P(30fps), 720P(30/60fps)
- Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
- Day/Night Auto(ICR) / Color / B/W
- Backlight Compensation BLC / HLC / DWDR (Digital WDR)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto / Manual
- Noise Reduction 2D / 3D
- Privacy Masking Up to 24 areas
- Digital Zoom 16x
Lens
- Focal Length 5.1 mm~61.2mm (12x Optical zoom)
- Max Aperture F1.6~ F3.0
- Focus Control Auto / Manual
- Angle of View H: 51.3° ~ 4.64°
- Close Focus Distance 100mm~1000mm
PTZ
- Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
- Manual Control Speed Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s
- Preset Speed Pan: 300°/s; Tilt:200°/s
- Preset 80(DH-SD) , 255(Pelco-P/D)
- PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
- Speed Setup Human-oriented focal length/ speed adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
- Protocol DH-SD, Pelco-P/D (Auto recognition)
Audio
- Interface 1 channel In
- Auxiliary Interface
- RS485 1
- Alarm 2/1 channel In/Out
General
- Power Supply AC24V/1.5A (±10%)
- Power Consumption 10W, 19W(Heater on)
- Working Environment -40ºC ~ 60ºC /
- Less than 90% RH
- Ingress Protection IP66
- Vandal Resistance IK10(Optional)
- Dimensions Φ186mm×234mm
- Weight 2.3Kg
