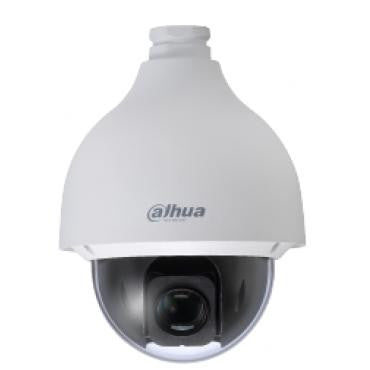

Dahua DH-SD50A230IN-HC-S2 2MP 30x Zoom HDCVI PTZ Dome Camera

Discontinued; Replaced by the 50230IC.

Dahua DH-SD50A230IN-HC-S2 Features

Camera

• Image Sensor 1/2.8-in. Exmor CMOS
• Effective Pixels 1920(H) x 1080(V)
• Scanning System Progressive
• Electronic Shutter Speed 1/1 s to 1/30,000 s
• Minimum Illumination Color: 0.005 Lux at F1.6, B/W: 0.0005 Luxat F1.6
• S/N Ratio More than 55 dB

Lens

• Lens Type Motorized/ Auto Iris
• Mount Type Board-in
• Focal Length 4.5 mm to 135 mm(30x Optical Zoom)
• Max Aperture F1.6 to F5.0
• Angle of View Horizontal: 67.8° to 2.7°
• Focus Control Auto, Manual
• Close Focus Distance 100 mm to 1000 mm

PTZ

• Pan/Tilt Range Pan: 0° to 360° endless; Tilt: 0° to 90°,
• Auto flip 180°
• Manual Control Speed
• Pan: 0.1° to 350° /s;
• Tilt: 0.1° to 250° /s
• Preset Speed Pan: 500° /s; Tilt: 500° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Resolution 1080p at 30 fps, 720p at 30/60 fps
• Video Output One (1) Channel BNC HDCVI High Definition Video Output, CVBS Standard Definition Video Output (switchable)
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, WDR (120dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction Ultra DNR (2D/3D)
• Digital Zoom 16x
• Flip 0°/180°
• Privacy Masking Up to 24 areas
• Interface Audio Interface One (1) Input
• RS485 One (1)
• Alarm Input: Two (2) Channels, Output: One (1) Channel

Certifications

• Safety UL (E234884-A71-UL)
• Electromagnetic Compatibility (EMC) FCC (SEFD1602154-B)

Electrical

• Power Supply 24 VAC, 1.5 A
• Power Consumption Maximum 23 W

Environmental

• Operating Conditions -40°C to +60°C (-40°F to +140°F), Less than 90% RH *Start up should be done at above -35°C (-31°F)
• Storage Conditions -30°C to +60°C (-22°F ~ +140°F), Less than 90% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø186.0 mm x 309.0 mm (ø 7.32 in. x 12.17 in.)
• Net Weight 2.50 kg (5.51 lbs)
• Gross Weight 4.50 kg (9.92 lbs)
• Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
