Discontinued; replaced by the 52C430IC.

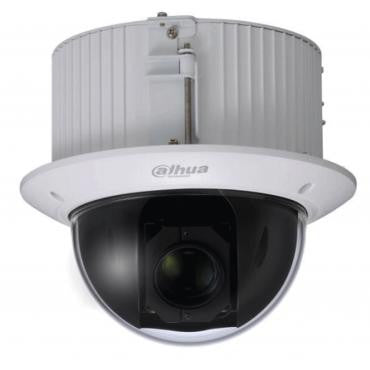

Dahua DH-SD52CA230IN-HC-S2 Features
Camera
- Image Sensor 1/2.8" STARVISTM CMOS
- Effective Pixels 1920 H x 1080 V
- Scanning System Progressive
- Electronic Shutter Speed 1/1 ~ 1/30,000s
- Minimum Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)
- S/N Ratio More than 55dB
- IR LEDs NA
Lens
- Lens Type Motorized / Auto Iris
- Mount Type Board-in
- Focal Length 4.5mm~135mm (30x Optical Zoom)
- Max Aperture F1.6 ~ F5.0
- Angle of View H: 67.8° ~ 2.7°
- Focus Control Auto / Manual
- Close Focus Distance 100mm ~ 1000mm
PTZ
- Pan/Tilt Range Pan: 0° ~ 360° Endless; Tilt: 0° ~ 90°, Auto Flip 180°
- Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s
- Preset Speed Pan: 500° /s; Tilt: 500° /s
- Presets 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Setup Human-oriented Focal Length / Speed Adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
- Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
- Protocol DH-SD, Pelco-P/D (Auto Recognition)
Video
- Resolution 30fps@1080p, 30/60fps@720p
- Video Output 1-channel BNC HDCVI High Definition Video Output / CVBS Standard Definition Video Output (Switchable)
- Day/Night Auto (ICR) / Color / B/W
- BLC Mode BLC / HLC / WDR (120dB)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto / Manual
- Noise Reduction Ultra DNR (2D/3D)
- Digital Zoom 16x
- Flip 0°/180°
- Privacy Masking Up to 24 Areas
Interface
- Audio Interface 1 Input
- RS485 1
- Alarm 2/1 In/Out
Certifications
- Certifications FCC (SEFD1602154-B)
- UL (E234884-A71-UL)
Electrical
- Power Supply AC24V / 1.5A
- Power Consumption Max. 13W
Environmental
- Operating Conditions -30°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH *Start up should be done at above -35°C (-31°F)
- Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
- Vandal Resistance IK10
Construction
- Casing Metal
- Dimensions Φ198mm x 177mm (Φ7.32" x 12.17")
- Net Weight 2.2kg (4.85lbs)
- Gross Weight 3.7kg (8.16lbs)
