Dahua DH-SD6AEA230FN-HNI

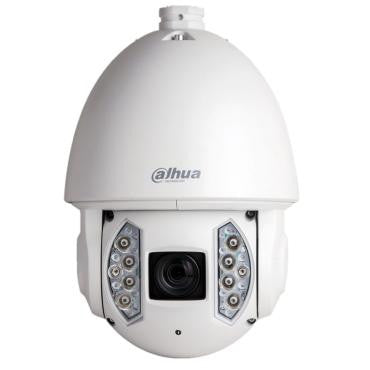

Dahua DH-SD6AEA230FN-HNI 2MP WDR PTZ Dome Network Camera

Dahua

Dahua DH-SD6AEA230FN-HNI 2MP WDR PTZ Dome Network Camera

$2,736.00
Discontinued
SKU: DH-SD6AEA230FN-HNI Ultra
Link to Manufacturer's Page

Contact

Dahua DH-SD6AEA230FN-HNI Features

Camera

  • Image Sensor 1/1.9" Exmor CMOS
  • Effective Pixels 1944(H) x 1092(V), 2 Megapixels
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 ~ 1/30,000s
  • Min. Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)
  • S/N Ratio More than 56dB
  • Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

  • Day/Night Auto(ICR) / Color / B/W
  • Backlight Compensation BLC / HLC / WDR（120dB）
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Privacy Masking Up to 24 areas
  • Digital Zoom 16x
  • EIS Support
  • Defog Support

Lens

  • Focal Length 6mm~180mm(30x Optical zoom)
  • Max Aperture F1.6 ~ F4.8
  • Focus Control Auto / Manual
  • Angle of View H: 61.2° ~ 2.32°
  • Close Focus Distance 100mm~ 1000mm

PTZ

  • Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
  • Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s
  • Preset Speed Pan: 240° /s; Tilt: 200° /s
  • Preset 300
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
  • Speed Setup Human-oriented focal length/ speed adaptation
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
  • Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

  • Compression H.264 / MJPEG
  • Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480)
  • /CIF(352×288/352×240)
  • Frame Rate Main Stream 1080P/ D1 (1 ~ 30fps), 720P(1~60fps)
  • Sub Stream 1 D1/CIF(1 ~ 30fps)
  • Sub Stream 2 720P/D1/ CIF (1 ~ 30fps)
  • Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

  • Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
  • Interface 1/1 channel In/Out

Intelligent Function

  • Auto Tracking Single-scene, multiple-scene, panorama-scene
  • IVS Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
  • Tracking Trigger Mode Manual / Auto (alarm triggered)
  • Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Compatibility ONVIF PSIA CGI
  • Max. User Access 20 users
  • Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

  • Memory Slot Micro SD, Max 64GB
  • RS485 1
  • Alarm 7/2 channel In/Out

General

  • Power Supply AC24V/3A(±25%), Hi-POE
  • Power Consumption 20W, 43W (IR on)
  • Working Environment -40ºC ~ 70ºC / Less than 90% RH
  • Ingress Protection IP67, IK10
  • Dimensions Φ240(mm) x 382 (mm)
  • Weight 6.75kg
  • Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
