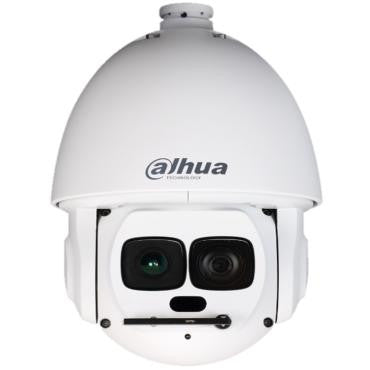

Dahua DH-SD6ALA230FN-HNI 2MP Laser PTZ Dome Network Camera

Dahua DH-SD6ALA230FN-HNI Features

Camera

• Image Sensor 1/1.9" Exmor CMOS
• Effective Pixels 1944(H) x 1092(V), 2 Megapixels
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Min. Illumination Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux (IR on)
• S/N Ratio More than 56dB
• Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC

Camera Features

• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / WDR(120dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Privacy Masking Up to 24 areas
• Digital Zoom 16x
• EIS Support
• Defog Support

Lens

• Focal Length 6mm~180mm(30x Optical zoom)
• Max Aperture F1.6 ~ F4.8
• Focus Control Auto / Manual
• Angle of View H: 61.2° ~ 2.32°
• Close Focus Distance 100mm~ 1000mm

IR Light

• Laser Light Control Auto / Manual
• Laser Distance Up to 500m
• Angle of Laser Light 2° ~ 60°

PTZ

• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s
• Preset Speed Pan: 240° /s; Tilt: 200° /s
• Preset 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Compression H.264 / MJPEG
• Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240)
• Frame Rate Main Stream 1080P/ D1 (1 ~ 30fps), 720P(1~60fps)
• Sub Stream 1 D1/CIF(1 ~ 30fps)
• Sub Stream 2 720P/D1/ CIF (1 ~ 30fps)
• Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps

Audio

• Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
• Interface 1/1 channel In/Out

Intelligent Function

• Auto Tracking Single-scene, multiple-scene, panorama-scene
• IVS Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
• Tracking Trigger Mode Manual / Auto (alarm triggered)
• Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Compatibility ONVIF PSIA CGI
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

• Memory Slot Micro SD, Max 64GB
• Alarm 7/2 channel In/Out

General

• Power Supply AC24V/3A(±25%), Hi-POE
• Power Consumption 20W, 43W (IR on)
• Working Environment -40ºC ~ 70ºC / Less than 90% RH
• Ingress Protection IP67
• Wiper Yes
• Dimensions Φ240(mm) x 357(mm)
• Weight 6.75kg
• Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
