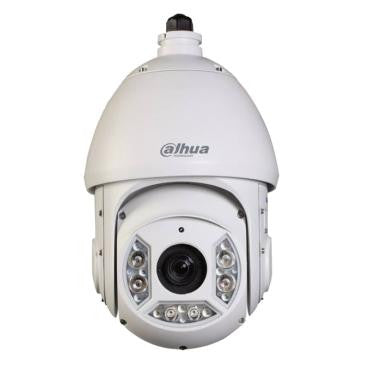

Dahua DH-SD6CA220IN-HC 2MP 20x Full HD HDCVI IR PTZ Dome Camera

Discontinued; replaced by the DH-SD6CA230IN-HC-S2

Dahua DH-SD6CA220IN-HC Features

Camera

• Image Sensor 1/2.8” Exmor CMOS
• Effective Pixels 1920(H) x 1080(V), 2Megapixels
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Min. Illumination Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)
• S/N Ratio More than 50dB
• Resolution 30fps@1080P, 30/60fps@720P
• Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)

Camera Features

• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / DWDR (Digital WDR)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction 2D/3D
• Privacy Masking Up to 24 areas
• Digital Zoom 16x

Lens

• Focal Length 4.7mm~94mm
• (20x Optical zoom)
• Max Aperture F1.4 ~ F2.6
• Focus Control Auto / Manual
• Angle of View H: 54.1° ~ 3.2°
• Close Focus Distance 100mm~ 1000mm

PTZ

• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
• Preset Speed Pan: 240° /s; Tilt: 200° /s
• Preset 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Protocol DH-SD, Pelco-P/D (Auto recognition)
• IR Distance 100m (2 near IR LED+ 4 far IR LED)

Audio

• Interface 1 channel In
• Auxiliary Interface
• RS485 1
• Alarm 2/1 channel In/Out

General

• Power Supply AC 24V/3A (±10%)
• Power Consumption 10.5W, 26W (IR on, Heater on)
• Working Environment -40ºC ~ 60ºC / Less than 90% RH
• Ingress Protection IP66
• Vandal Resistance N/A
• Dimensions Φ204.7(mm) x 359.9(mm)
• Weight 7.5kg
