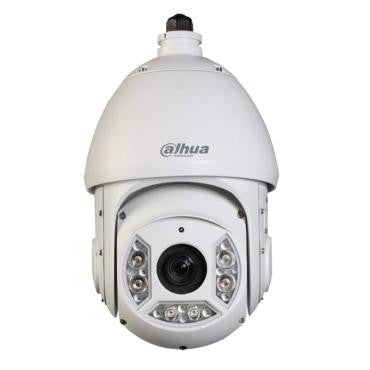

Dahua DH-SD6CA230IN-HC-S2 2MP 30x Starlight HDCVI IR PTZ Dome Camera

Dahua DH-SD6CA230IN-HC-S2 Features

Camera

• Image Sensor 1/2.8" Exmor CMOS
• Effective Pixels 1920 H x 1080 V
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Minimum Illumination Color: 0.005Lux@F1.6;
• B/W: 0.0005Lux@F1.6;
• 0Lux (IR on)
• S/N Ratio More than 50dB
• IR Distance 150m (492ft)
• IR On/Off Control Auto / Manual
• IR LEDs 6

Lens

• Lens Type Motorized / Auto Iris
• Mount Type Board-in
• Focal Length 4.5mm ~ 135mm (30x Optical Zoom)
• Max Aperture F1.6 ~ F5.0
• Angle of View H: 67.8° ~ 2.7°
• Focus Control Auto / Manual
• Close Focus Distance 100mm ~ 1000mm

PTZ

• Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
• Preset Speed Pan: 240° /s; Tilt: 200° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power Up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
• Protocol DH-SD, Pelco-P/D (Auto Recognition)

Video

• Resolution 30fps@1080p, 30/60fps@720p
• Video Output 1-channel BNC HDCVI High Definition Video Output / CVBS Standard Definition Video Output (Switchable)
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / WDR (120dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Digital Zoom 16x
• Flip 0°/180°
• Privacy Masking Up to 24 Areas
• Interface
• Audio Interface 1 Input
• Rs485 1
• Alarm 2/1 In/Out
• Certifications FCC (SEFD1602099-A)
• UL (E234884-A55-UL)

Electrical

• Power Supply AC24V/3A (±10%)
• Power Consumption Max. 10.5W, 26W (IR on, Heater on)

Environmental

• Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
• *Start up should be done at above -35°C (-31°F)
• Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection IP66

Construction

• Casing Metal
• Dimensions Φ204.7mm x 359.9mm (Φ8.06" x 14.17")
• Net Weight 4.8 kg (10.58 lbs)
• Gross Weight 8.3kg (18.30lbs)
