Required Components for the Human Body Temperature Measurement Solution

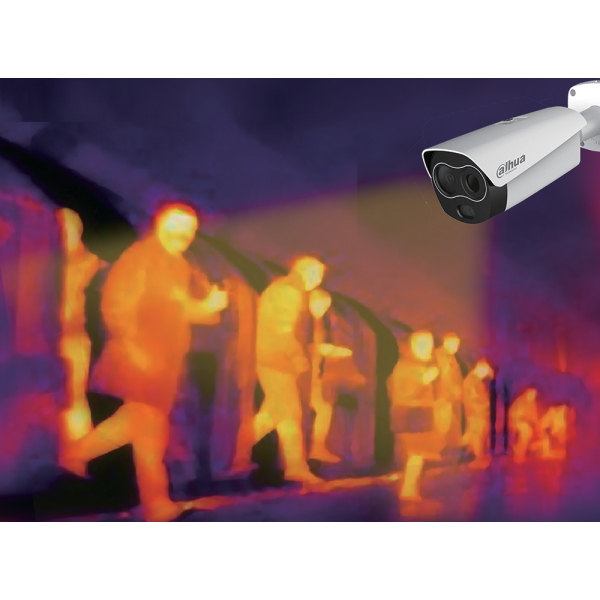

- DH-TPC-BF5421-T Thermal Hybrid Network Camera
- JQ-D70Z Blackbody
- DHI-NVR5216-16P-I 16-channel NVR with Face Recognition
Recommended Accessories
- DHL43-F600 Monitor
- VCT-999 Tripod (x2)
- RQW026-00 Brackets (x2)
Camera Features
Thermal Camera
- Image Sensor Uncooled VOx Microbolometer
- Effective Pixels 256 (H) x 192 (V)
- Pixel Size 12 µm
- Thermal Sensitivity (NETD) ≤ 50 mK at f/1.1
- Spectral Range 8 µm to 14 µm
- Image Setting Brightness, Sharpness, ROI, AGC, FFC, 3D DNR
- Color Palettes 18, including: Whitehot, Blackhot, Icefire, Fusion, Rainbow, Globow, Ironbow1, and Sepia
Thermal Lens
- Lens Type Fixed
- Focus Control Athermalized, Focus-free
- Focal Length 7.1 mm
- Angle of View Horizontal: 24°, Vertical: 18°
Visible-light Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 1920 (H) x 1080 (V)
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination Color: 0.002 lux at F1.9, B/W: 0.0002 lux at F1.9, 0 lux with IR On
- IR Distance 35.0 m (114.83 ft)
- IR On/Off Control Auto, Manual
- IR LEDs One (1)
Visible-light Lens
- Focal Length 8 mm
- Maximum Aperture F1.9
- Angle of View Horizontal: 40°, Vertical: 22°
Temperature Measurement
- Range 30° C to 45° C (86° F to 113° F)
- Accuracy ±0.3° C, with blackbody; ±1° C, without blackbody
- Mode Spot, Line, Area
- Rule Supports 12 Rules Simultaneously: Spot: 12, Line: 12, Area: 12
Video
- Compression H.265, H.264, MJPEG
- Frame Rate Main Stream Thermal 1280 x 1024, 1024 x 768, 640 x 480, 256 x 192 at 30 fps; Visible 1920 x 1080, 1280 x 720, 704 x 480 at 30 fps
- Frame Rate Sub Stream Thermal 640 x 480, 256 x 192 at 30 fps; Visible 704 x 480, 352 x 240 at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.264: 640 Kbps to 8192 Kbps
- Day/Night Auto (ICR), Color, B/W
- BLC Mode BLC, HLC, WDR
- White Balance Auto, Manual
- Motion Detection Off, On (4 zones, Rectangle)
- Region of Interest Off, On (4 zones)
- Defog On, Off
- Flip 180°
- Mirror Off, On
- Privacy Masking Off, On (4 areas, Rectangle)
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF
- Interoperability ONVIF Profile S & G, API
- Streaming Method Unicast, Multicast
- Maximum User Access 20 Users
Certifications
- Safety EN 60950:2000
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B
Interface
- Audio Input: One (1) Channel, 3.5 mm Jack, Output: One (1) Channel, 3.5 mm Jack
- Audio Compression G.711a, G.711Mu, AAC, PCM
- RS485 One (1) Port
- Alarm Input: Two (2) Channels, Output: Two (2) Channels
Electrical
- Power Supply 12 VDC or PoE (IEEE802.3af Class 0)
- Power Consumption Maximum 12 W
Environmental
- Operating Temperature 10° C to +35° C (50° F to +95° F)
- Storage Conditions 10° C to +35° C (50° F to +95° F) Less than 95% RH
- Ingress Protection IP67
Construction
- Casing Metal
- Dimensions 279.90 mm x 103.80 mm x 95.80 mm (11.02 in. x 4.09 in. x 3.77 in.)
- Net Weight 1.40 kg (3.09 lb)
Please note: 1 year warranty, No Returns Accepted
