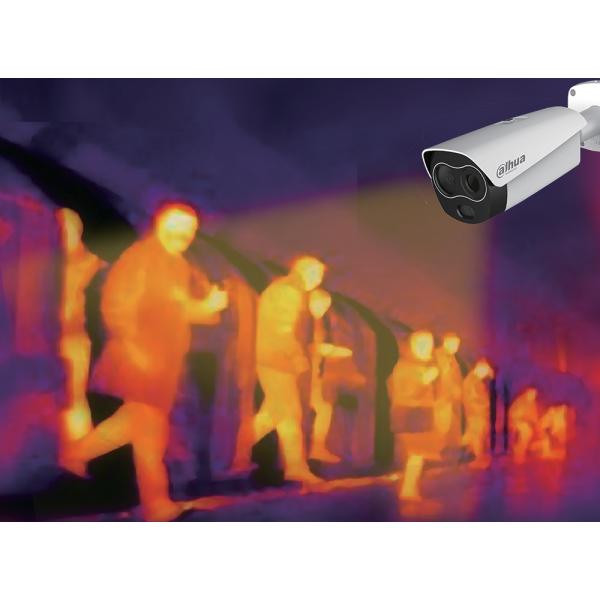

Dahua DH-TPC-BF5421-T Thermal Hybrid Network Camera for use with the Human Body Temperature Measurement Solution

Dahua

Dahua DH-TPC-BF5421-T Thermal Hybrid Network Camera for use with the Human Body Temperature Measurement Solution

$2,269.78
Discontinued
SKU: DH-TPC-BF5421-T
Link to Manufacturer's Page

Contact

Required Components for the Human Body Temperature Measurement Solution

  • DH-TPC-BF5421-T Thermal Hybrid Network Camera
  • JQ-D70Z Blackbody
  • DHI-NVR5216-16P-I 16-channel NVR with Face Recognition

Recommended Accessories

  • DHL43-F600 Monitor
  • VCT-999 Tripod (x2)
  • RQW026-00 Brackets (x2)

Camera Features

Thermal Camera

  • Image Sensor Uncooled VOx Focal Plane Detector
  • Effective Pixels 300 (H) x 400 (V)
  • Pixel Size 17 µm
  • Thermal Sensitivity (NETD) ≤40 mK
  • Spectral Range 8 µm to 14 µm
  • Image Settings Electronic Thermal Image Stabilization, Digital Detail Enhancement
  • Color Palettes 18, including: Whitehot, Blackhot, Icefire, Fusion, Rainbow, Globow, Ironbow1, and Sepia

Thermal Lens

  • Lens Type Fixed-focal
  • Focus Control Athermalized, Focus-free
  • Aperture F1.0
  • Focal Length 13 mm
  • Angle of View Horizontal: 30.0°, Vertical: 22.60°

Visible-light Camera

  • Image Sensor 1/2.8-in. CMOS
  • Effective Pixels 1920 (H) x 1080 (V)
  • Electronic Shutter Speed 1/1 s to 1/30,000 s
  • Minimum Illumination Color: 0.002 lux at F1.9, B/W: 0.0002 lux at F1.9, 0 lux with IR On
  • IR Distance 35.0 m (114.83 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs One (1)

Visible-light Lens

  • Focal Length 8 mm
  • Maximum Aperture F1.9
  • Angle of View Horizontal: 40°, Vertical: 22°

Temperature Measurement

  • Range 30° C to 45° C (86° F to 113° F)
  • Accuracy ±0.3° C, with blackbody; ±1° C, without blackbody
  • Mode Spot, Line, Area
  • Rule Supports 12 Rules Simultaneously: Spot: 12, Line: 12, Area: 12

Video

  • Compression H.265, H.264, H.264H, H.264B, MJPEG
  • Frame Rate Main Stream Thermal 1280 x 1024, 1024 x 768, 640 x 480, 256 x 192 at 30 fps, 1280 x 960 (default); Visible 1920 x 1080, 1280 x 720, 704 x 480 at 30 fps; Sub Stream Thermal 640 x 480, 256 x 192 at 30 fps; Visible 704 x 480, 352 x 240 at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H.264: 640 Kbps to 8192 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, WDR
  • White Balance Auto, Manual
  • Motion Detection Off, On (4 zones, Rectangle)
  • Noise Reduction 2D, 3D
  • Advanced Features Electronic Thermal Image Stabilization
  • Digital Detail Enhancement
  • Region of Interest Off, On
  • Defog On, Off
  • Flip 90°, 180°
  • Mirror Off, On
  • Privacy Masking Off, On (4 areas, Rectangle)

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF
  • Interoperability ONVIF, CGI, Dahua SDK
  • Edge Storage FTP, MicroSD Card slot (up to 256 GB)
  • Maximum User Access 20 Users (64 Mbps total bandwidth)
  • User Management Supports 20 users atone time and users are classified as one of tow groups: administrator or user
  • Security Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

Certifications

  • Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011, + A2:2013, IEC 60950-1:2005 (Second Edition); Am1:2009 +, Am2:2013
  • Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B, EN 55032:2015, EN 61000 3 2:2014

Interface

  • Video Output: One (1) Channel, CVBS with BNC
  • Audio Input: One (1) Channel, 3.5 mm Jack, Output: One (1) Channel, 3.5 mm Jack
  • Audio Compression G.711a, G.711Mu, AAC, PCM
  • RS485 One (1) Port
  • Alarm Input: Two (2) Channels, Output: Two (2) Channels
  • Alarm Linkage SD Card Recording, On,off Output, Siren and Light, Email, PTZ, snapshot
  • Malfunction Detection Motion Detection, Privacy Mask, Audio Detection, SD Card Abnormality, Network Abnormality, antiburn warning

Electrical

  • Power Supply 12 VDC ±20% or PoE (IEEE802.3af Class 0)
  • Power Consumption Standrd: 5 W, Maximum 12 W

Environmental

  • Operating Temperature 10° C to +30° C (50° F to 95° F), Less than 95% RH
  • Storage Temperature –40° C to 70° C (–40° F to 158° F)
  • Ingress Protection IP67
  • Static Discharge Protection Physical Contact: 8 KV, Via Air: 15 KV
  • Self-Adaptive Toggles heater on or off, depending on ambient temperature

Construction

  • Casing Metal
  • Dimensions, camera 279.90 mm x 103.80 mm x 95.80 mm (11.02 in. x 4.09 in. x 3.77 in.)
  • Dimensions, packaging 365.0 mm x 175.0 mm x 176.0 mm (14.37 in. x 6.89 .in x 6.93 in.)
  • Net Weight 1.40 kg (3.09 lb)
  • Gross Weight ≤ 1.90 kg (4.19 lb)

Please note: 1 year warranty, No Returns Accepted
