Dahua

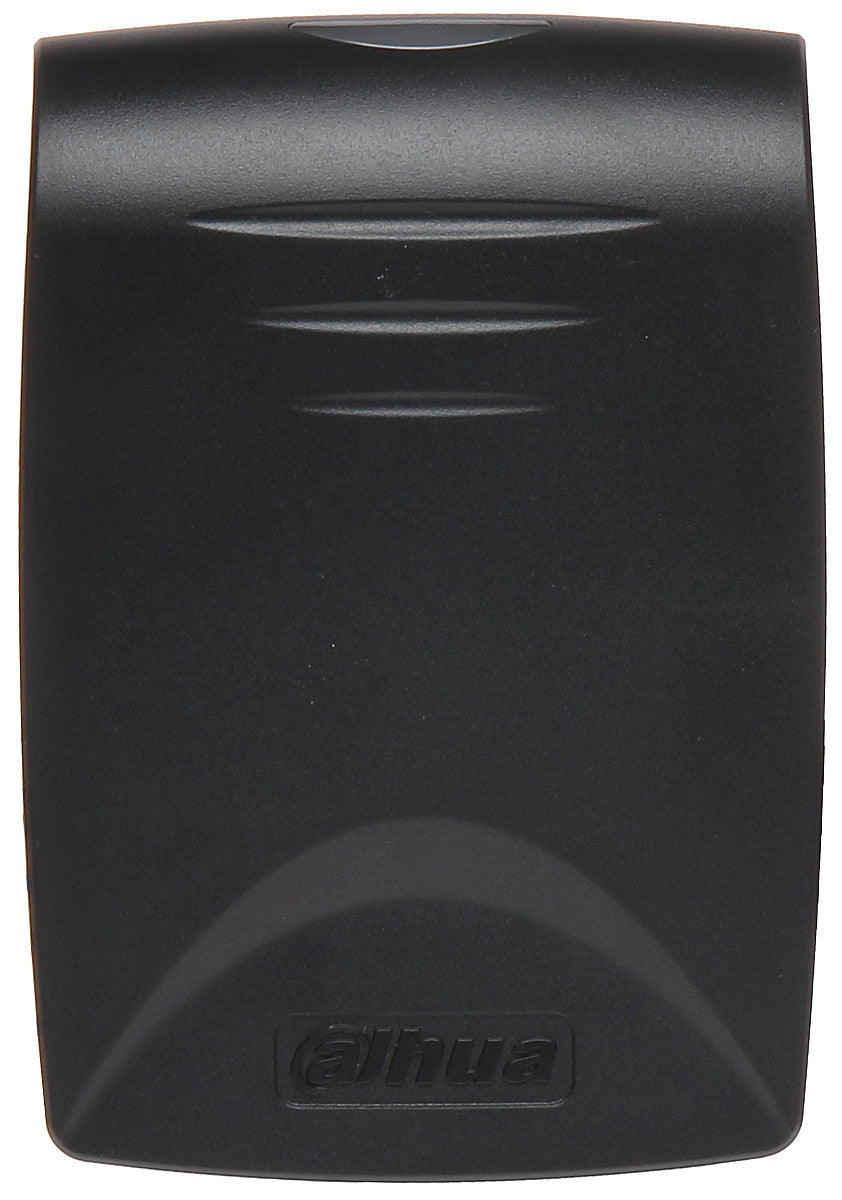

Dahua DHI-ASR1100B Waterproof RFID Reader
Dahua DHI-ASR1100B Features
- Wiegand Protocol
- Default IC (MIFARE) Card
- Waterproof Design
- Built-in Relay to Lock Door
- Watch Dog Function for Tamper Detection
- Audible and Visual Indicators
- Surface-mount Installation
Dahua DHI-ASR1100B Specifications
Main Processor:
- 8-bit
Visual Indicator:
- Blue Backlight
Audible Indicator:
- Buzzer
Reader:
- Format 13.56 MHz MIFARE
- Range 6 cm to 8 cm (2.36 in. to 3.15 in.), maximum
- Response Time < 0.1 s
Controller Compatibility:
- RS485
Safety:
- EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013
- Conforms to UL Standards
Electromagnetic Compatibility(EMC):
- FCC CFR 47 Part 15 subpart B
- EN 55032:2015
- EN 55024:2010+A1:2015
- EN 50130-4:2011+A1:2014
- EN 6100-3-2:2014, EN 6100-3-3:2013
Electrical/Environmental:
- Power Supply 9 VDC to 15 VDC, 100 mA
- Operating Temperature -30° C to +60° C (-22° F to +140° F)
Construction:
- Color Black
- Dimensions 72.0 mm x 102.0 mm x 18.0 mm - (2.83 in. x 4.02 in. x 0.71 in.)
- Net Weight 0.20 kg (0.44 lb)
- Model Number MF11CS50
- Standard MIFARE S50, 13.56 MHz
- Compatibility ISO/IEC 14443A
- Range Approximately 10 cm (3.94 in.)
- Dimensions 86.0 mm x 54.0 mm x 0.80 mm - (3.39 in. x 2.13 in. x 0.03 in.)
- Weight 0.006 kg (0.013 lb)
- Manufacturer/Brand Dahua
