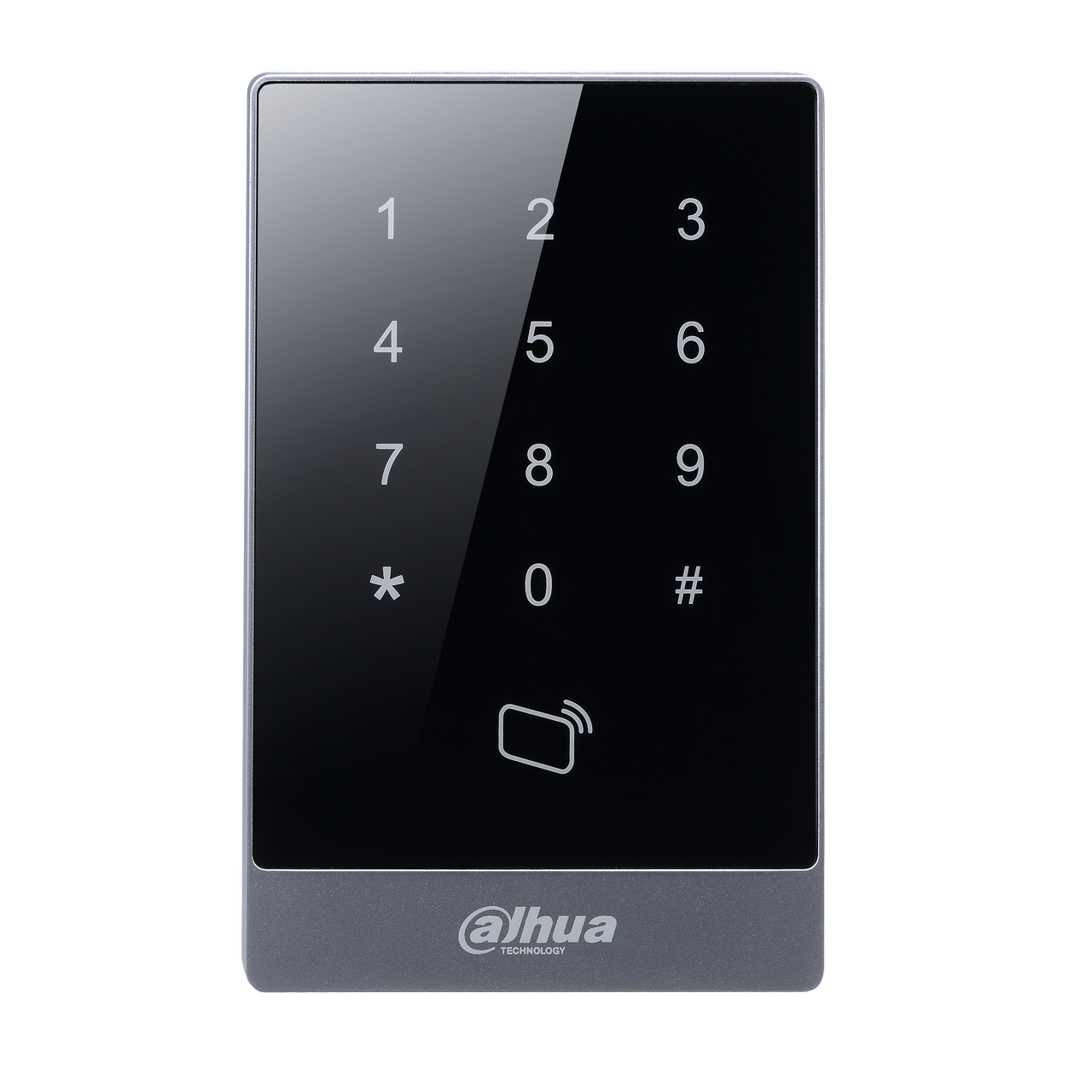

Dahua DHI-ASR1101A Features
- Wiegand 26/34 and RS485 Protocols
- MIFARE 13.56 MHz Card
- Watch Dog Function for Tamper Detection
- Sensitive Touch Keypad with Blue Backlight
- Audible and Visual Indicators
- Surface-mount Installation
Dahua DHI-ASR1101A Specifications
System
- Main Processor 8-bit
- LCD Display Blue Backlight
- Audible Indicator Buzzer
Reader
- Format 13.56 MHz MIFARE
- Distance 6 cm to 8 cm (2.36 in. to 3.15 in.), maximum
- Response Time < 0.1 s
- Keypad Sensitive Touch Keypad
- 12 Keys (1 to 9, *, #)
Interface
- To Controller Wiegand 26/34, RS485
Certifications
- Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013
- Conforms to UL Standards
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B, EN 55032:2015, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014, EN 6100-3-2:2014, EN 6100-3-3:2013
Electrical/Environmental
- Power Supply 9 VDC to 15 VDC, 100 mA
- Operating Temperature -30° C to +60° C (-22° F to +140° F)
- Operating Humidity ≤ 95%
Construction
- Color Black
- Dimensions 135.70 mm x 86.80 mm x 12.70 mm (5.34 in. x 3.42 in. x 0.50 in.)
- Net Weight 0.25 kg (0.55 lb)
