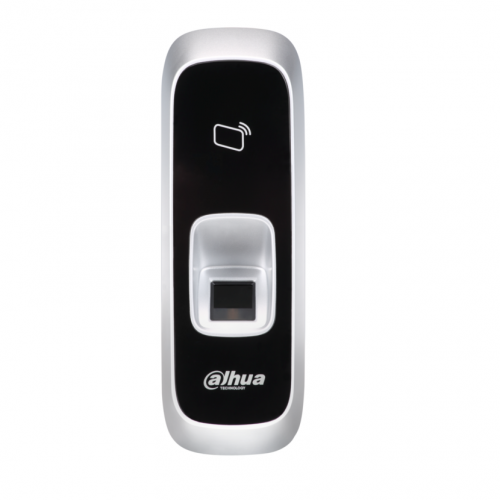

Dahua DHI-ASR1102A (V2) Features
- RS-485 protocol
- Default IC (Mifare) card (“-D” means ID EM card)
- Support card, fingerprint
- Up to 3000 fingerprints capacity
- Blue backlight
- Watch dog function ensure device free from halting
- Beep and indicator
- Surface mounted installation
Dahua DHI-ASR1002A (V2) Specifications
Main Processor:
- 8-bit
Reader:
- Format 13.56 MHz
- Range 6 cm to 8 cm maximum
- Response Time < 0.1 s
Fingerprint:
- Capacity - 3000
- Response Time - ≤0.5s
- Recognition Time - ≤1.5s
- FAR - ≤0.00004%
- FRR - ≤0.15%
Function:
- Tamper Alarm - Yes
Interface:
- To Controller - RS485
General:
- LCD Display - Blue backlight
- Beep Tone - Buzzer
- Power Supply - 9-15VDC/100mA
- Working Environment - -5°C-+55°C
- Working Humidity - 5%~95%
- Dimension(W×D×H) - 125mm*56mm*47mm
- Weight - 0.25kg
