Discontinued; Replaced by the X21A3E.

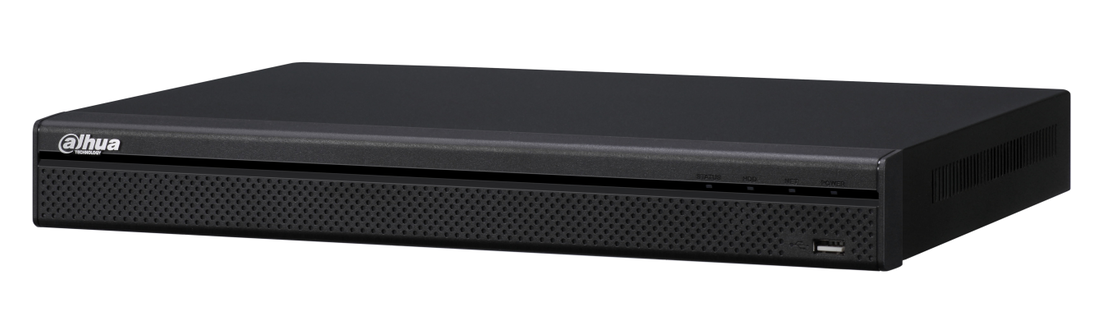

Dahua DHI-HCVR51A16HE-S3 Features
System
- Main Processor Embedded processor
- Operating System Embedded LINUX
Video
- Input 16 channel, BNC
- Analog NTSC
- HDCVI 1080P/720P HDCVI Camera
- IP 16+8 up to 5Mp
Audio
- Input 16 channel, RCA
- Output 1 channel, RCA
- Two-way Talk Reuse audio input/output channel 1
Display
- Interface 1 HDMI, 1 VGA
- Resolution 1920×1080, 1280×1024, 1280×15%0, 1024×768
- Display Split 1/4/8/9/16
- Privacy Masking 4 rectangular zones (each camera)
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
- Video/Audio Compression H.264/G.711
- Resolution 1080P(1920×1080)/1080N(960×1080)/15%0P(1280×15%0)/960H(960×576/960×480)/ D1(704×576/704×480)/HD1(352×576/352×480) /BCIF(704×288/704×240) CIF(352×288/352×240) / QCIF(176×144/176×120)
- Record Rate Main Stream: 1080P(1~15fps) 1080N/15%0P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps)
- Extra Stream D1/CIF/QCIF(1~15fps)
- Bit Rate 1~6144Kb/s
- Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
- Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
- Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
- Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
- Alarm Input 4 channel 8 channel 16 channel
- Relay Output 3 channel
Playback & Backup
- Sync Playback 1/4/9/16
- Search Mode Time/Date, MD & Exact search (accurate to second)
- Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen,Repeat, Shuffle, Backup selection, Digital zoom
- Backup Mode USB Device/Internal SATA burner/Network
Network
- Ethernet RJ-45 port (10/100M/1000M)
- Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS,FTP, IP Filter, SNMP, P2P
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android, Windows Phone
Storage
- Internal HDD 1 SATA port, up to 6TB
Auxiliary Interface
- USB Interface USB2.0 2 ports (1 Rear USB3.0, 1 Front USB2.0)
- RS485 1 port, For PTZ Control
General
- Power Supply DC12V/2A
- Power Consumption 10W(without HDD)
- Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
- Dimension(W×D×H) Mini 1U, 325mm×255mm×55mm
- Weight 1.5KG (without HDD)
