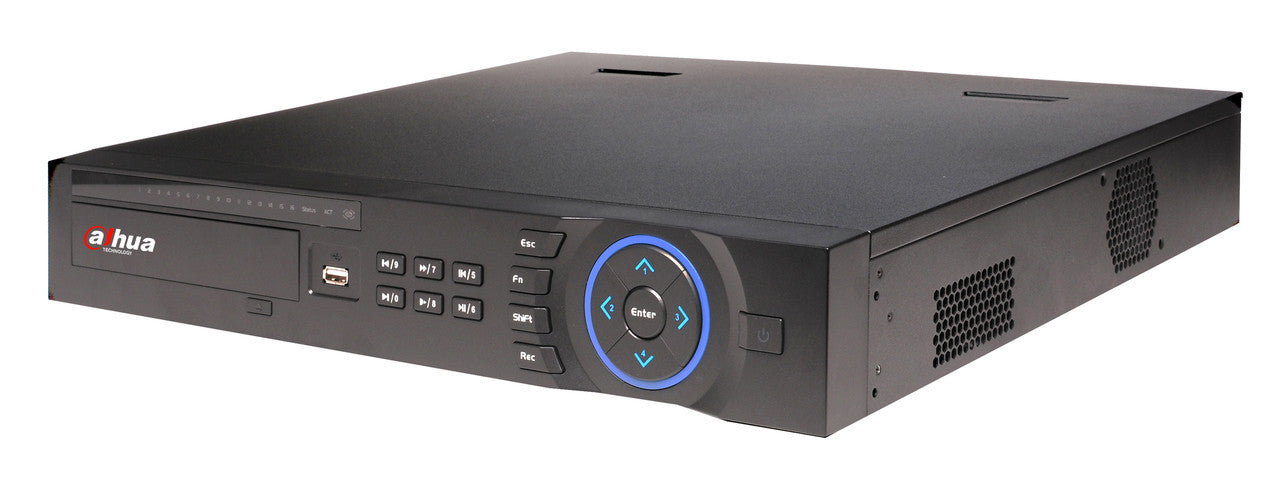

Dahua DHI-HCVR54A16L-V2 16CH Tribrid HDCVI/Analog/IP DVR

Dahua DHI-HCVR54A16L-V2 Features

System

• Main Processor Embedded processor
• Operating System Embedded LINUX

Video

• Input 16 channel, BNC
• Standard HDCVI 1080P/720P HDCVI Camera
• Analog NTSC
• IP Support 2ch 1080P/720P IP Camera

Audio

• Input 4 channel, BNC
• Output 1 channel, BNC
• Two-way Talk 1 channel Input, 1 channel Output, BNC

Display

• Interface 1 HDMI, 1 VGA, 1 TV
• Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split 1/4/8/9/16
• Privacy Masking 4 rectangular zones (each camera)
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

• Video/Audio Compression H.264/G.711
• Record Rate Main Stream: 1080P(1~15fps)/720P/960H/D1/HD1/2CIF/CIF(1~30fps)
• Extra Stream CIF/QCIF(1~30fps)
• Bit Rate 48~4096Kb/s
• Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
• Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

• Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
• Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
• Alarm Input 16 channel
• Relay Output 6 channel

Playback & Backup

• Sync Playback 1/4/9/16
• Search Mode Time/Date, MD & Exact search (accurate to second)
• Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Backup Mode USB Device/eSATA Device/Internal SATA burner/Network

Network

• Ethernet RJ-45 port (10/100M/1000M)
• Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Storage

• Internal HDD 4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB
• External HDD 1 eSATA port

Auxiliary Interface

• USB Interface 3 ports (2 Rear), USB2.0
• RS232 1 port, For PC communication & Keyboard
• RS485 1 port RS485 for PTZ control,1 port RS422 for Keyboard

General

• Power Supply AC 100~240 V, 50/60 Hz
• Power Consumption 40W(Without HDD)
• Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
• Dimension(W×D×H) 1.5U, 440mm×416mm×68mm
• Weight 6KG(without HDD)
