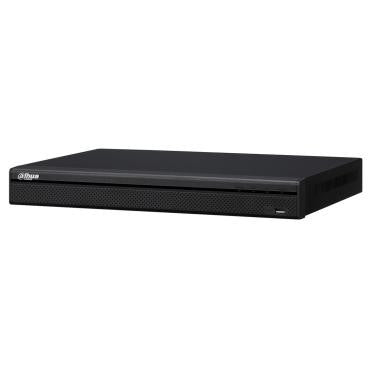

Dahua DHI-HCVR72A04-S3 Features
System
- Main Processor Embedded processor
- Operating System Embedded LINUX
Video
- Input: 4 channel, BNC
- Analog: NTSC/PAL
- HDCVI :1080P/720P HDCVI Camera
- IP: 4+2 up to 5Mp
Audio
- Input 4 channel, RCA
- Output 1 channel, RCA
- Two-way Talk Reuse audio input/output channel 1
Display
- Interface 1 HDMI, 1 VGA
- Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
- Display Split 1/4/6
- Privacy Masking 4 rectangular zones (each camera)
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
- Video/Audio Compression H.264/G.711
- Record Rate Main Stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps)
- Extra Stream D1/CIF/QCIF(1~30fps)
- Bit Rate 1~6144Kb/s
- Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
- Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
- Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
- Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
- Alarm Input 8 channel 16 channel 16 channel
- Relay Output 3 channel
Playback & Backup
- Sync Playback 1/4
- Search Mode Time/Date, MD & Exact search (accurate to second)
- Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
- Backup Mode USB Device/Internal SATA burner/Network
Network
- Ethernet RJ-45 port (10/100M)
- Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android, Windows Phone
Storage
- Internal HDD 2 SATA ports, up to 12TB
Auxiliary Interface
- USB Interface 2 ports(1 Rear), USB2.0
- RS485 1 port, For PTZ control
General
- Power Supply DC12V/4A
- Power Consumption 15W(without HDD)
- Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
- Dimension(W×D×H) 1U, 375mm×285mm×55mm
- Weight 2.35KG(without HDD)
