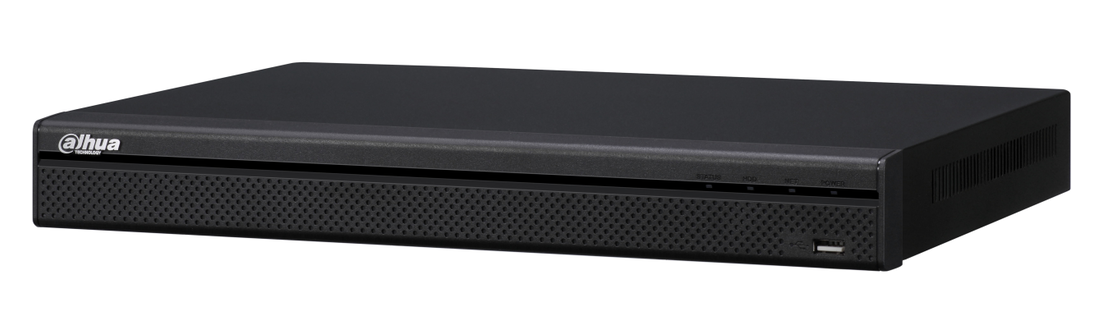

Dahua DHI-HCVR72A04A-S3 4CH Tribrid HDCVI/CVBS/IP DVR

Discontinued; Replaced by the X32A1A1.

Dahua DHI-HCVR72A04A-S3 Features

System

• Main Processor Embedded processor
• Operating System Embedded LINUX

Video

• Input 4 channel, BNC
• Analog NTSC/PAL
• HDCVI 1080P/720P HDCVI Camera
• IP 4+2 up to 5Mp

Audio

• Input 4 channel, RCA
• Output 1 channel, RCA
• Two-way Talk Reuse audio input/output channel 1

Display

• Interface 1 HDMI, 1 VGA
• Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split 1/4/6
• Privacy Masking 4 rectangular zones (each camera)
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

• Video/Audio Compression H.264/G.711
• Record Rate Main Stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps)
• Extra Stream D1/CIF/QCIF(1~30fps)
• Bit Rate 1~6144Kb/s
• Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
• Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

• Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
• Alarm Input 8 channel 16 channel 16 channel
• Relay Output 3 channel

Playback & Backup

• Sync Playback 1/4
• Search Mode Time/Date, MD & Exact search (accurate to second)
• Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Backup Mode USB Device/Internal SATA burner/Network

Network

• Ethernet RJ-45 port (10/100M)
• Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Storage

• Internal HDD 2 SATA ports, up to 12TB

Auxiliary Interface

• USB Interface 2 ports(1 Rear)
• RS485 1 port, For PTZ control

General

• Power Supply DC12V/4A
• Power Consumption 15W(without HDD)
• Working Environment -10°C ~+55°C / 10%~90%RH / 86~106kpa
• Dimension(W×D×H) 1U, 375mm×285mm×55mm
• Weight 2.35KG (without HDD)
