Discontinued & Replaced by the X34A3L

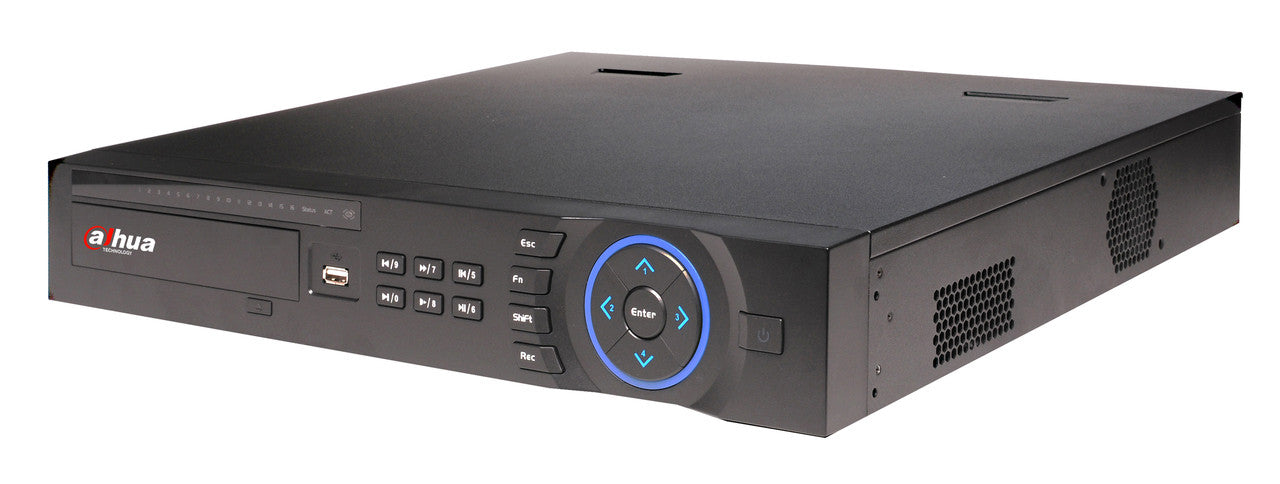

Dahua DHI-HCVR74A16L Features
System
- Main Processor Embedded processor
- Operating System Embedded LINUX
Video
- Input 16 channel
- HDCVI 16 (1080P/720P Camera)
- Analog NTSC 16
- IP 16 + 16 channels (All channels support 1080P/720P IP Camera)
Audio
- Input 4 channel, BNC
- Output 1 channel, BNC
- Two-way Talk 1 channel input,1channel output, BNC
Display
- Interface 2 HDMI,1 VGA,1 TV
- Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
- Display Split 1/4/8/9/16
- Privacy Masking 4 rectangular zones (each camera)
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
- Video/Audio Compression H.264/G.711
- Resolution 1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/ CIF(352×288/352×240)/QCIF(176×144/176×120)
- Record Rate Main Stream: 1080P/720P/960H/D1/HD1/2CIF/CIF(1~30fps)
- Extra Stream CIF/QCIF(1~30fps)
- Bit Rate 48~6144Kb/s
- Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
- Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
- Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips
- Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
- Alarm Input 16 channel
- Relay Output 6 channel
Playback & Backup
- Sync Playback 1/4/9/16
- Search Mode Time/Date, MD & Exact search (accurate to second)
- Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
- Backup Mode USB Device/eSATA Device/Internal SATA burner/Network
Network
- Ethernet RJ-45 port (10/100M/1000M)
- Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android, Windows Phone
Storage
- Internal HDD 4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB, Raid(redundancy)
- External HDD 1 eSATA port
Auxiliary Interface
- USB Interface 3 ports(2 Rear),USB2.0
- RS232 1 port, For PC communication & Keyboard
- RS485 1 port RS485 for PTZ control,1 port RS422 for Keyboard
General
- Power Supply AC 100~240 V, 50/60 Hz
- Power Consumption 40W(without HDD)
- Working Environment -10°C~+55°C/ 10%~90RH / 86~106kpa
- Dimension(W×D×H) 1.5U, 440mm×416mm×68mm
- Weight 6KG(without HDD)
