Dahua DHI-ITC237-PU1B-IR

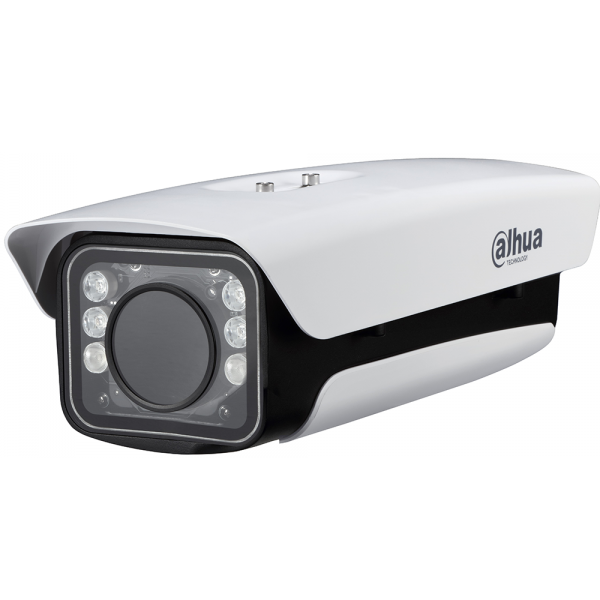

Dahua DHI-ITC237-PU1B-IR 2MP 5~50mm Varifocal License Plate Capture Camera

Dahua

Dahua DHI-ITC237-PU1B-IR 2MP 5~50mm Varifocal License Plate Capture Camera

$1,044.00
Discontinued
SKU: DUA-DHI-ITC237-PU1B-IR
Link to Manufacturer's Page

Contact

Features

Camera

  • Image Sensor 1/2.8-in. 2 MP STARVIS™ CMOS
  • Effective Pixels 1920(H) x 1080(V)
  • Scanning System Progressive
  • Electronic Shutter Speed Auto, Manual, 1/50 s to 1/10000 s
  • Minimum Illumination Color: 0.002 lux at F1.6, 0 lux at F1.6 (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 40.0 m (131.23 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Six (6)

Lens

  • Lens Type Manual / Auto Iris (DC)
  • Mount Type CS
  • Focal Length 5 mm to 50 mm
  • Max. Aperture F1.6
  • Angle of View Horizontal: 50° to 5.6°
  • Vertical: 37.5° to 4.2°
  • Focus Control Manual
  • Close Focus Distance 4.0 m to 40.0 m (13.12 ft to 131.23 ft) for license plate capture ( Different height required, > 10.0 m long range recommendation)
  • Focus Width Range 3.50 m to 7.0 m (11.48 ft to 22.97 ft), approximately two (2) lanes

Video

  • Compression H.265, H.264M, H.264H, H.264B, MJPEG
  • Streaming Capability Two (2) Streams
  • Resolution 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480)
  • Frame Rate Main Stream: 1080p at 30 fps, Sub Stream: 720p or D1 at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate 32 Kbps to 16384 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, Ultra WDR (140 dB)
  • White Balance Auto, Manual
  • Gain Control Auto, Manual
  • Noise Reduction 3D

Network

  • Ethernet RJ-45 (100/1000 Base-T)
  • Protocol IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS
  • Interoperability ONVIF, CGI
  • Streaming Method Unicast, Multicast
  • Maximum User Access 20 Users
  • Edge Storage Local PC for instant recording
  • Micro SD Card Slot, 64 GB maximum
  • Web Viewer IE, Chrome
  • Management Software DSS

Certifications

  • Safety UL6950-1
  • Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B

Interface

  • Audio Input: Two (2) Channels, Output: One (1) Channel
  • Alarm Input: Two (2) Channels, Output: Two (2) Channels

Electrical

  • Power Supply PoE+ (IEEE802.3at Class 4)
  • Power Consumption 17 W

Environmental

  • Operating Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Storage Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Ingress Protection IP66

Construction

  • Casing Metal
  • Dimensions 404.0 mm x 163.80 mm x 132.10 mm (15.91 in. x 6.45 in. x 5.20 in.)
  • Net Weight
  • Gross Weight 4.10 kg (9.04 lb)

Please note: does not include License Plate Recognition software. Please refer to Datasheet for information on optimal camera placement.
Does not include a mounting bracket
