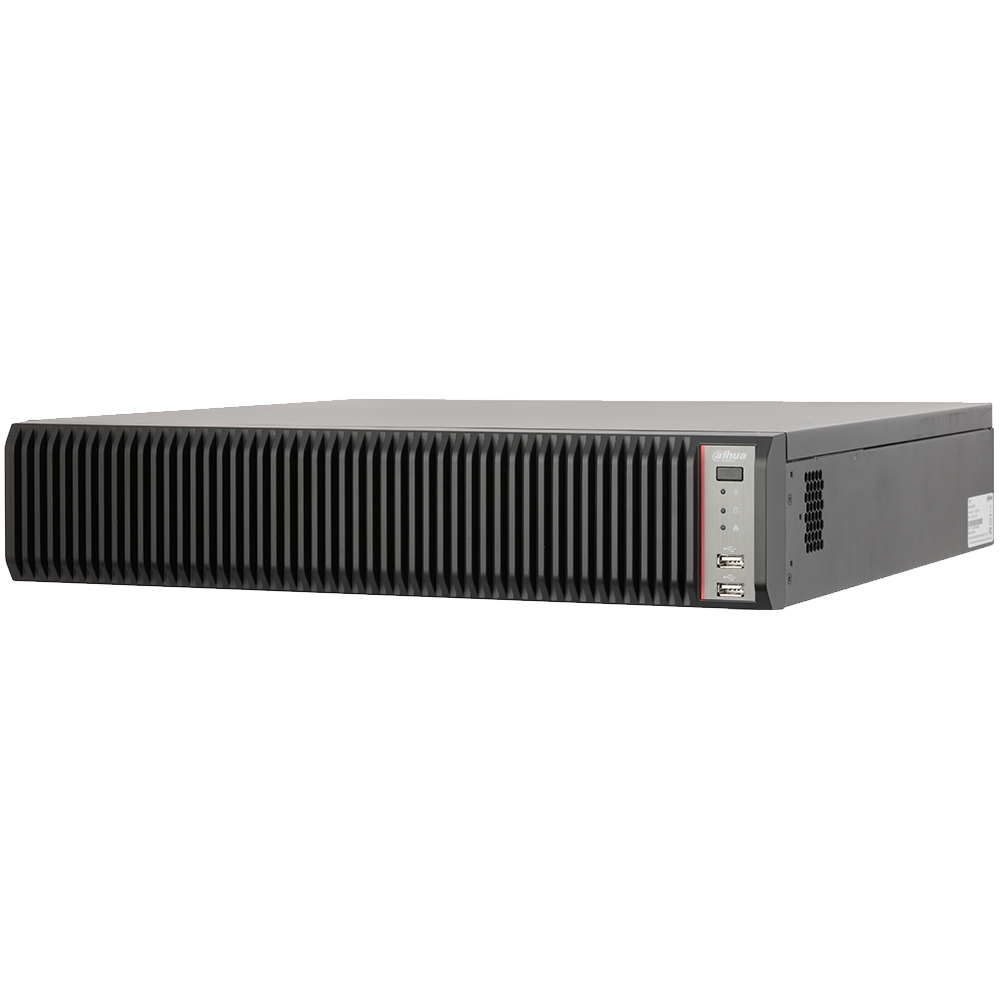

Dahua DHI-IVSS7008-1T Features
System
- Main Processor Intel Dual-core Processor
- Memory 8 GB, up to 32 GB
- Operating System Embedded LINUX
Artificial Intelligence
- Face Recognition
- Up to Four (4) Channels
- Metadata Structured data for gender, age, expression, glasses, moustache, and mask
- Stranger Mode
- Detects a face not stored in the IVSS database.
- Similarity Threshold set manually.
- Trigger Events
- Buzzer, snapshot, recording
- Search by Image
- Up to ten (10) target face image searches simultaneously.
- Supports Similarity Threshold for each target face image.
- Database Management
- 20 Face Databases
- 100,000 total face images.
- Stores name, gender, birthday, nationality, address, ID information for each face picture.
- Database Application
- Each database can be applied to video channels independently.
Audio and Video
- IP Camera Input 128 Channels
- Audio Input: One (1) Channel, RCA, Output: (2) Channels, RCA
Display
- Interface Three (3) HDMI Outputs, One (1) VGA Output
- Native Output Resolution HDMI: (all outputs) 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, VGA: 1920 × 1080 , 1280 × 1024, 1280 × 720
- Maximum Decoding 20 Channels of 1080p at 30 fps
- Multi-screen Display Up to 36 Splits for each screen
- On-screen Display Camera Title, Time, Camera Lock, Motion Detection, Recording
Recording
- Compression H.265, H.264, MJPEG, MPEG4
- Supported IP Camera Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p
- Maximum Incoming Bandwidth 400 Mbps
- Maximum Recording Bandwidth 320 Mbps
- Record Mode Schedule (Continuous Event)
Video Detection and Alarm
- Trigger Events Recording, Snapshot, Buzzer
- Video Detection Motion Detection, MD Zones: 396 (22 × 18); Tampering
- Alarm Inputs 16 Channels
- Relay Outputs Eight (8) Channels
Playback and Backup
- Sync Playback Up to 16 Channels Synchronous Playback,
- 64 Mbps Playback Bandwidth
- Search Mode Time and Date, Video Detection, Face and Exact
- Search (accurate to one second)
- Backup Mode USB Device, Network
Third-party Support
- Third-party Support AXIS, Panasonic, and Sony cameras that support CGI
Network
- Interface Four (4) RJ-45 Ports (10/100/1000 Mbps)
- Network Port Mode Independent Ethernet Ports, Load Balance,
- Fault-Tolerance, Link Aggregation
- Network Function HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR, NVR), P2P
- Interoperability ONVIF 2.4, SDK
Storage
- Internal HDD Eight (8) SATA HDD Ports,
- Up to 10 TB capacity for each disk
- HDD Mode Single, RAID 0/1/5/10 (Enterprise-level HDDs are recommended), Supports Global HDD Hot-spare
- eSATA One (1) eSATA Port¹
Auxiliary Interface
- USB Two (2) USB 2.0 Ports, Two (2) USB 3.0 Ports
- RS232 One (1) Port for PC Communication
- RS485 One (1) Port for PTZ Control
Electrical
- Power Supply 100 VAC to 240 VAC, 50/60 Hz
- Power Consumption < 120 W, without HDD
Environmental
- Operating Conditions 0° C to +45° C (32° F to 113° F), 86 kpa to 106 kpa
- Storage Conditions –20° C to +70° C (–4° F to 158° F), 0% to 90% RH
Construction
- Dimensions 2U, 439.70 mm x 446.20 mm x 98.80 mm (17.32 in. x 17.57 in. x 3.57 in.)
- Net Weight 8.55 kg (18.85 lb), without HDD
- Installation Standard 19-in. Rack-mount
Certifications
- Safety UL 60950-1, EN60950-1
- Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B, ANSI C63.4-2014, EN55032, EN55024, EN50130-4
