Dahua DHI-MPTZ1100-2030RA-NT Features
Camera
- Image Sensor 1/2.8-in. Progressive-scan CMOS Sensor
- Effective Pixels 1920(H) x 1080(V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination Color: 0.005 lux at F1.6, 0 lux at F1.6 (IR on)
- S/N Ratio More than 55 dB
- IR Distance Up to 80 m (262.47 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Two (2)
Lens
- Focal Length 4.5 mm to 135 mm
- Maximum Aperture F1.6 to F4.4
- Angle of View Horizontal: 2.77° to 67.80°
- Optical Zoom 30x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm (3.93 in. to 39.37 in.)
PTZ
- Pan/Tilt Range Pan: 0° to 360°, endless, Tilt: -20° to 90°
- Manual Control Speed Pan: 0.1° to 90° /s, Tilt: 0.1° to 60° /s
- Preset Speed Proportional Pan/Tilt Speed to Zoom Ratio
- Presets 256
- PTZ Mode 8 Tours
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
- Protocol DH-SD, Pelco-P/D (auto recognition)
Video
- Compression H.264 Baseline, H.264 Main Profile,
- H.264 High Profile, MJPEG
- Streaming Capability Three (3) Streams
- Resolution 1080p (1920 x 1080)
- White Balance Auto, Manual, ATW, Outdoor, Indoor,
- Outdoor Auto, Sodium Lamp Auto, Sodium Lamp
- Gain Control Auto, Manual
- Noise Reduction Ultra DNR (2D/3D)
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- Digital Zoom 16x
- Flip 180°
Audio
- Compression G.711a, G.711Mu, PCM, AAC, G.722, G.726, G.729, MPEG2-L2
Network
- Ethernet RJ45 (10/100 Base-T)
- Protocol IPv4/IPv6, HTTP, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, PPPoE
- Interoperability ONVIF
- Streaming Method Unicast, Multicast
- Maximum User Access 20
- Edge Storage Micro SD Card, maximum 128 GB
- Web Viewer IE 10, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System IOS, Android
Certifications
- Safety EN 60950:2000, UL 60950-1
- Mobile Applications EN 50155, E-mark (ECE-Regulation No.10)
- Electromagnetic Compatibility FCC Part 15 Subpart B
Electrical
- Power Supply 12 VDC
- Power Consumption < 12 W, IR Off; 24 W, IR On
Environmental
- Operating Conditions -35° C to +60° C (-31° F to +140° F), Less than 90% RH
- Storage Conditions -35° C to +60° C (-31° F to +140° F), Less than 90% RH
- Ingress Protection IP66
Construction
- Casing Aluminum Alloy (Main Body)
- Dimensions 124.0 mm x 120.0 mm x 210.0 mm (4.88 in. x 4.72 in. x 8.27 in.)
- Net Weight 2.50 kg (5.52 lb)
- Gross Weight 3.50 kg (7.72 lbs)
Intelligence
- IVS triggers an alarm and takes a defined action for the following events:
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Premium Features
- Motion An object moves through any part of the scene.
- Tripwire A target crosses a user-defined line.
- Intrusion A target enters or exits a defined perimeter.
- Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
- Abandoned/Missing Object
- A target leaves an object in designated area, or a target removes an object from the same designated area.
- Advanced Features
- Facial Detection Detects and captures a snapshot of human face in a defined area within a scene
Mobile Series Overview

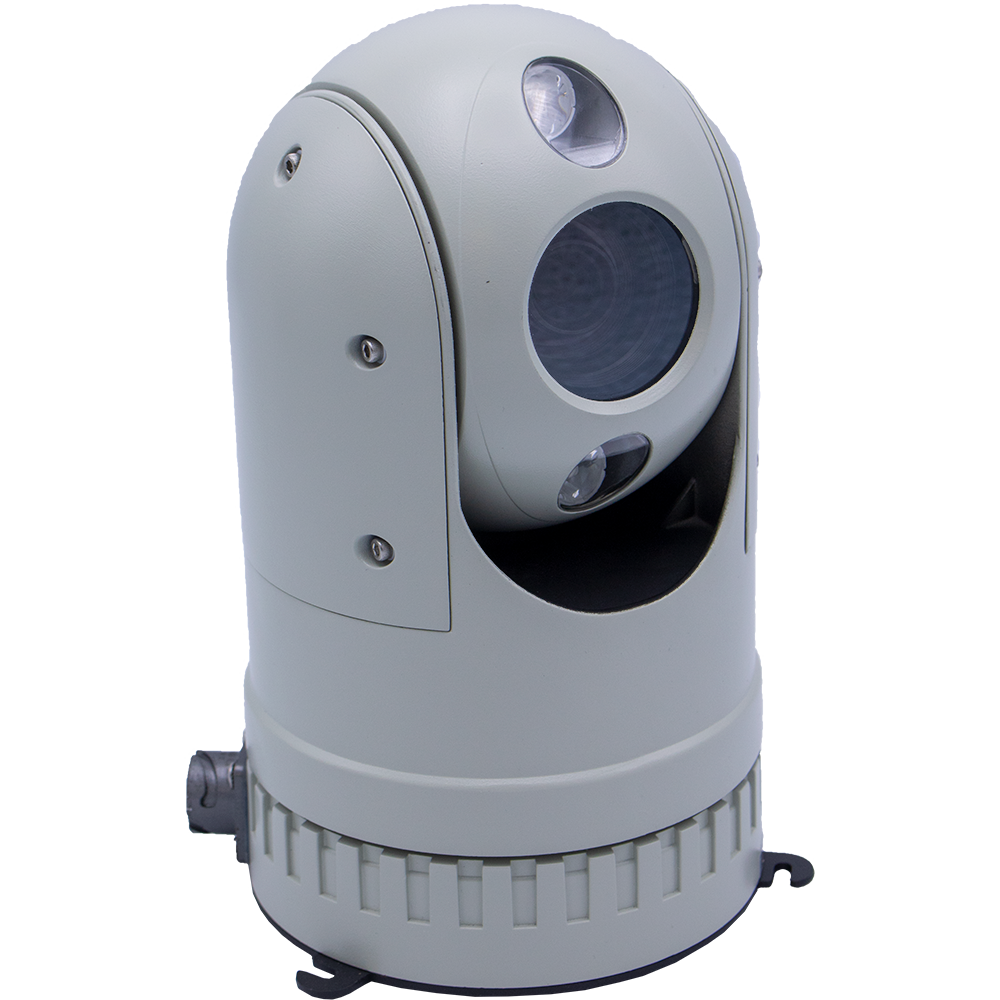

Dahua’s Mobile series of cameras offers high-resolution video and cutting-edge technology in a compact and accessible package. The 2 MP IR Portable PTZ Dome camera features a 1/2.8-in. CMOS imager with a 30x optical zoom lens, and provides an all in one solution for capturing mobile video surveillance for indoor and outdoor applications. The camera uses the H.264 video compression standard to improve encoding efficiency while preserving high-quality video and is equipped with quick and accurate pan/tilt/zoom control.
