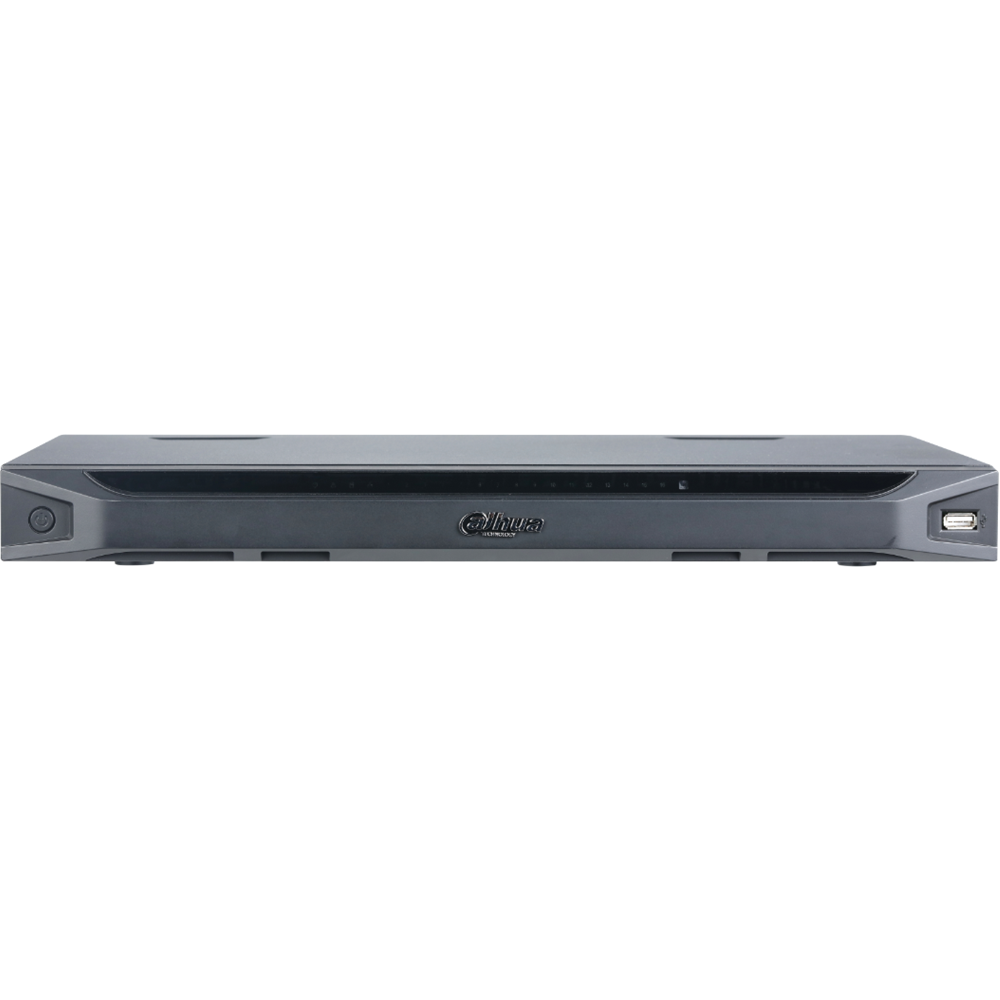

Dahua DHI-NVD0105DH-4K Features
System
-
Processor Intel x86 Processor
-
Operating System Embedded LINUX
Performance
-
Video Compression Smart H.265+ H.265, H.264, MPEG4, MJPEG
-
Audio Compression PCM, G711
-
Decoding Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p,
960H, D1, HD1, 2CIF, CIF, QCIF
Video Decoding
-
3 channels of 12 MP at 25 fps
-
4 channels of 8 MP at 30 fps
-
6 channels of 6 MP at 25 fps
-
8 channels of 5 MP at 25 fps
-
9 channels of 4 MP at 25 fps
-
10 channels of 3 MP at 30 fps
-
12 channels of 3 MP at 25 fps
-
16 channels at 1080P
-
36 channels at 720P
-
64 channels at D1
-
Video Output HDMI or VGA
-
Display Resolution 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720,
1024 x 768 -
Audio Output HDMI
-
Communication Interface -
One (1) RJ45 Network Port (10/100/1000 Mbps),Self-adaptive,
One (1) RS232 Port (DB9) -
Bi-directional Talk -
Input: One (1) Channel, RCA,Output: One (1) Channel, RCA,
(2 Vrms, 10K Ω) -
Alarms Input: Four (4) Channels,
Output: Four (4) Relays (30 VDC 1 A, 125 VAC, 0.5 A)
Power, Environment, Construction
-
Power Supply 12 VDC, 3.3 A
-
Power Consumption ≤ 20 W
-
Working Temperature –10 °C to +55 °C (14 °F to 131 °F)
-
Working Humidity 10% to 90%, 86 Kpa to 106 Kpa
-
Unit Dimension 1U, 440.0 mm x 322.80 mm x 44.0 mm
(17.32 in. x 12.71 in. x 1.73 in.) -
Weight 3.20 kg (7.05 kg)
Package Contents
- 1 x VDC Power Adapter
- 1 x Ethernet Cable (RJ45 connectors)
- 2 x Alarm I/O, RS485 Terminal Connector with screws
- 2 x Rack Mount Ears
- 1 x Network Video Decoder Quick Start Guide
