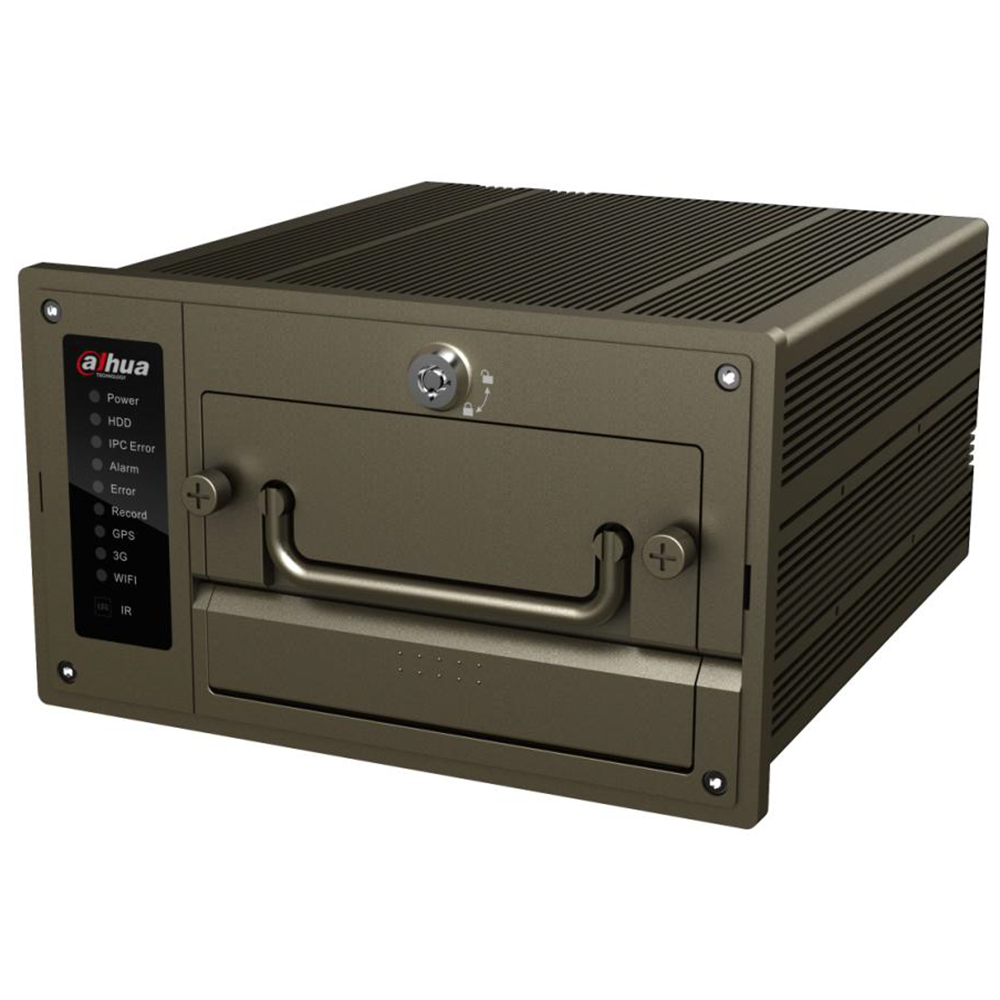

Dahua DHI-NVR0804MF-GFW RJ45 8-channel Mobile NVR

Dahua DHI-NVR0804MF Features

• H.264 and MJPEG Compression
• Four-channel Synchronous Real-time Playback with GRID Interface
• HDMI/VGA/TV Simultaneous Video Ouput
• Supports Two (2) 2.5-in. SATA HDDs, up to 2 TB each
• Includes Eight (8) PoE Ports (IEEE802.3 af/at)
• Aviation Connectors for Increased Signal Stability
• Optional WiFi Module Available
• Conforms to ONVIF Version 2.3
• Multiple Network Monitoring Applications: Web Views, CMS, DSS
• 5-year Warranty (for products sold through an authorized Dahua dealer)
• Five-year Warranty when purchased from Network Camera Store an authorized Dahua Partner

System

• Main Processor Dual-core Embedded Processor
• Operating System Embedded LINUX

Display

• Interface - One (1) HDMI, One (1) VGA, Two (2) TV
• Resolution 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
• Multi-screen Display 1/4/8/9
• Privacy Masking Four (4) Rectangular Zones (each camera)
• On-screen Display Options Camera Title, Time, Video Loss, Camera Lock, Motion Detection, and Recording

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Alarm Out, Email, FTP, Buzzer, and Screen Tips
• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, and Camera Blank
• Alarm Alarm Input: Alarm Input: Eight (8) Channels Relay Output: Three (3) Channels

Playback and Backup

• Sync Playback 1/4
• Search Mode Time / Date, Alarm, Motion Detection, and Exact Search (accurate to 1 second), Smart Search
• Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
• Backup Mode USB Device, eSATA Device, Network, Internal HDD

Storage

• Internal HDD Two (2) SATA Ports, up to 4 TB total
• External HDD One (1) eSATA Port
• Memory Slot One (1) Micro SD Card

Auxiliary Interface

• USB Three (3) Ports total, including two (2) USB 3.0 ports
• RS232 One (1) Port for PC communication and keyboard connection
• RS485 One (1) Port for PTZ Control
• G-sensor Support
• UPS Support
• CAN Port Support, Power Supply for PTZ

Audio and Video

• Camera Inputs Eight (8) IP Channels
• Audio, Two-way Talk One (1) Channel Microphone Input, One (1) Channel Microphone Output

Recording

• Video Compression H.264, MJPEG
• Audio Compression G.711, PCM
• Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p, D1
• Record Rate 200 Mbps, maximum
• Bit Rate 48 Kbps to 8192 Kbps per Channel
• Record Mode - Manual, Schedule (Regular, Continuous), Motion Detection, and Stop
• Record Interval - 1 minute to 120 minutes (default: 60 minutes)
• Pre-record: 1 s to 30 s
• Post-record: 10 s to 300 s

Network

• Interface -M12 Models M12 D-coded Connector (10/100 Base-T)
• Interface -RJ45 Models RJ45 Connector (10/100 Base-T), PoE Four (4) Ports (IEEE802.3af/at)
• PoE Eight (8) Ports (IEEE802.3af/at)
• Network Function TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
• Wireless Network Built-in 3G/4G WiFi Module (optional)
• GPS Built-in High-accuracy GPS Module
• Max. User Access 128 users
• Mobile Operating System IOS, Android, Windows

Electrical

• Power Supply 6 V to 36 V
• Power Consumption ≤ 15 W

Environmental

• Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), with optional heater 10% to 95% RH, 86 to 106 kpa
• Vandal Resistance IK10

Construction

• Dimensions 180.0 mm × 208.0 mm × 100.0 mm (7.09 in. x 8.19 in. x 3.94 in.)
• Net Weight 3.0 kg (6.61 lbs), without HDD

Certifications

• Safety Conforms to UL Standard
• Mobile Applications EN 50155
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Ordering Information

• DHI-NVR0804MF-GFW M12
  Eight (8) IP Camera Channels, GPS, Wifi, 4G, Network Video Recorder, M12 D-coded Connector

• DHI-NVR0804MF-GFW RJ45
  Eight (8) IP Camera Channels, GPS, Wifi, 4G, Network Video Recorder, RJ45 Connector

• DHI-NVR0804MF-G M12
  Eight (8) IP Camera Channels, GPS, Network Video Recorder, M12 D-coded Connector


• DHI-NVR0804MF-G RJ45
  Eight (8) IP Camera Channels, GPS, Network Video Recorder, RJ45 Connector

Dahua DHI-NVR0804MF Overview

Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution NVR (or MNVR) operates across different transportation networks. The MNVR simultaneously records up to four (4) IP cameras in real-time and provides up to four (4) simultaneous video output channels. The MNVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. MNVR technology is the ideal solution for actively monitoring and recording video feeds from mobile IP cameras. The recorder uses M12 aviation connectors to connect to cameras as an added level of stability.

Interfaces
Record and monitor video from up to four (4) IP camera inputs simultaneously. The mobile NVR supports four (4) channels of HDMI/ VGA/TV simultaneous video playback, multiple alarm inputs and relay outputs, plus two-way talk connections – one (1) audio input and one (1) audio output.

Flexible Recording
The MNVR offers a variety of configurable recording options and schedules that saves HDD space and active monitoring time. The HCVR monitors incoming video and can be programmed to record if motion is detected. The MNVR can also be programmed to record on a schedule or at different intervals.

Smart Search
Smart Search allows an operator to specify a region in the playback video to search for a motion detection event, saving time and manpower.
