Dahua DHI-NVR41A04HS-W-S2

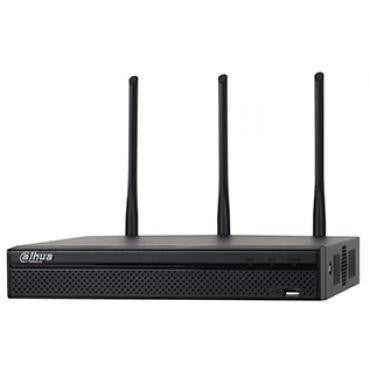

Dahua DHI-NVR41A04HS-W-S2 4CH Wi-Fi Network Video Recorder

Dahua

Dahua DHI-NVR41A04HS-W-S2 4CH Wi-Fi Network Video Recorder

$268.20
Discontinued
SKU: DHI-NVR41A04HS-W-S2 Lite
Link to Manufacturer's Page

Contact

Replaced by the N41B1W

Dahua DHI-NVR41A04HS-W-S2 Features

System

  • Main Processor Dual-core embedded processor
  • Operating System Embedded LINUX

Display

  • Interface One (1) HDMI; One (1) VGA
  • Resolution 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
  • Multi-screen Display 1/4
  • On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, and Recording
  • Video Detection and Alarm
  • Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
  • Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, and Camera Blank

Playback and Backup

  • Playback 1/4
  • Search Mode Time/Date, MD, and Exact Search (accurate to one second), Smart Search
  • Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  • Backup Mode USB Device/Network

Storage

  • Internal HDD One (1) SATA III Port, Up to 6 TB capacity for each HDD
  • HDD Mode Single

Connections

  • IP Video Four (4) Channels
  • USB (auxiliary) Two (2) USB 2.0 Ports
  • Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others

Recording

  • Compression H.264/MJPEG
  • Resolution 5 MP/ 4 MP/ 3 MP/ 1080p / 1.3 MP / 720p
  • Record Rate 80 Mbps
  • Bit Rate 16 Kbps to 20 Mbps per Channel
  • Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Stop
  • Record Interval 1 min. to 120 min. (default: 60 min.),
  • Pre-record: 1 s to 30 s
  • Post-record: 10 s to 300 s

Network

  • Interface One (1) RJ-45 Port (10/100 Mbps)
  • Ethernet Port One (1) Independent 100 Mbps Ethernet Port
  • Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Supports Dahua IP Cameras, DVRs, NVS)
  • Max. User Access 128 users
  • Mobile Operating System IOS and Android
  • Interoperability ONVIF 2.4, CGI Conformant

Electrical

  • Power Supply Single, DC12V / 2 A
  • Power Consumption < 10 W (without HDD)

Environmental

  • Operating Conditions -10°C to +55°C (+14°F to +131°F), 86 to 106 kpa
  • Storage Conditions -20°C to +70°C (-4°F to +158°F), 0 to 90% RH

Construction

  • Dimensions 260.0 mm x 246.40 mm x 47.60 mm (10.24 in. x 9.70 in. x 1.87 in.)
  • Net Weight 0.5 kg (1.1 lb) (without HDD)
  • Gross Weight 2.0 kg (4.4 lb)(without HDD)
