Dahua DHI-NVR42A04-P

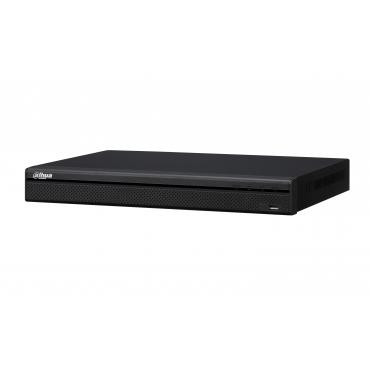

Dahua DHI-NVR42A04-P 4CH PoE Network Video Recorder

Dahua

Dahua DHI-NVR42A04-P 4CH PoE Network Video Recorder

$280.80
Discontinued
SKU: DHI-NVR42A04-P Lite
Link to Manufacturer's Page

Contact

Replaced by the N42B1P.

Dahua DHI-NVR42A04-P Features

System

  • Main Processor Dual-core embedded processor
  • Operating System Embedded LINUX

Video & Audio

  • IP Camera Input 4 channel
  • Two-way Talk 1 channel Input, 1 channel Output,RCA

Display

  • Interface 1 HDMI, 1 VGA
  • Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
  • Display Split 1/4
  • OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

  • Compression Smart H.264+ / MJPEG
  • Resolution 5MP (2560×1920) /3MP (2048×1536) / 1080p (1920×1080) / 720p (1280×720) / D1 (704×576/704×480)
  • Record Rate 200Mbps
  • Bit Rate 48~ 8192kbps
  • Record Mode Manual, Schedule (Regular(Continuous), MD, Alarm), Stop
  • Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

  • Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
  • Video Detection Motion Detection, MDZones: 396 (22×18), Video Loss & Camera Blank
  • Alarm Input 4 channel
  • Relay Output 2 channel

Playback & Backup

  • Sync Playback 1/4
  • Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
  • Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
  • Backup Mode USB Device/Network/Internal SATA burner

Network

  • Ethernet 1 RJ-45 port (10/100/1000Mbps)
  • PoE 4 ports (IEEE802.3at/af)
  • Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS)
  • Max. User Access 128 users
  • Smart Phone iPhone, iPad, Android

Storage

  • Internal HDD 2 SATA ports, up to 8TB

Auxiliary Interface

  • USB 2 ports (1 Rear USB3.0,1 Front USB2.0)
  • RS232 1 port, For PC communication & Keyboard
  • RS485 1 port, For PTZ control

General

  • Power Supply DC12V/4A
  • PoE: DC48V/1.04A
  • Power Consumption NVR: 20W (without HDD)
  • PoE: Max 25.5W for single port
  • Working Environment -10℃~+55℃ / 10%~90% RH / 86~106kpa
  • Dimension (W×D×H) 1U, 375mm×282mm×56mm
  • Weight 2.0KG (without HDD)
