Replaced by the DHI-NVR6A08-32-4KS2.

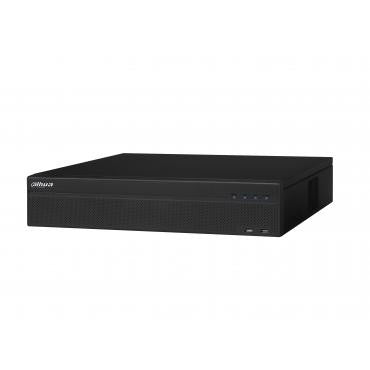

Dahua DHI-NVR58A32-4KS2 Features
System
- Main Processor Quad-core embedded processor
- Operating System Embedded LINUX
Display
- Interface 2 HDMI (1 HDMI up to 3840 x 2160, Different Source ), 1 VGA
- Resolution 3840 x 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
- Multi-screen 1st Screen: 1/4/8/9/16/25/36
- Display 2nd Screen: 1/4/8/9/16
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection Motion Detection, MD Zones: 396 (22 × 18),
- Video Loss and Camera Blank
- Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
- Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface
- Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm
Playback and Backup
- Sync Playback 1/4/8/16/25/36
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate tosecond)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Storage
- Internal HDD 8 SATA III Ports, Up to 48 TB
- HDD Mode Single, Raid 0/1/5/6/10
- eSATA 1 eSATA port
Auxiliary Interface
- Front Cover N/A
- USB 2 ports (1 Rear USB 3.0, 1 Front USB 2.0)
- SAS N/A
- RS232 1 Port, for PC Communication and Keyboard
- RS485 1 Port, for PTZ Control
Third-party Support
- Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
- IP Camera Input 32 Channel
- Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Recording
- Compression H.265/ H.264/ MJPEG/ MPEG4
- Resolution 12MP /8MP /6MP /5MP /4MP /3MP /1080p/ 720p/ D1
- Record Rate 320Mbps
- Bit Rate 16kbps~20Mbps for per Channel
- Record Mode Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
- Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Network
- Interface 2 RJ-45 port (10/100/1000Mbps)
- Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
- Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS), P2P
- Optical Fiber Interface N/A
- Max. User Access 128 Users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 2.4, CGI Conformant
Electrical
- Power Supply Single, AC 100~240V, 50/60 Hz
- Power Consumption NVR: 16.7W (without HDD)
Environmental
- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
- Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
- Dimensions 2U, 440mm × 455.1mm × 94.9mm (17.3" x 17.9" x 3.7")
- Net Weight 6.55kg (14.4 lb) (without HDD)
- Gross Weight 9.5kg (20.94 lb)
- Installation Rack mount (rack mount ears included)
Certifications
- FCC VFHKEM1607001085IT
- UL E234884-A108-UL
