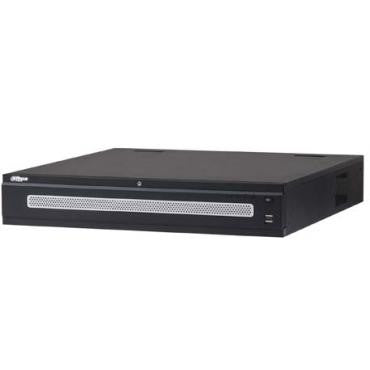

Dahua DHI-NVR6A08-128-4KS2 128CH 4K Network Video Recorder

Dahua DHI-NVR6A08-128-4KS2 Features

System

• Main Processor Intel Quad-core Processor
• Operating System Embedded LINUX

Display

• Interface 2 HDMI (up to 3840 x 2160, Different Source), 1 VGA
• Resolution 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
• Multi-screen 1st Screen: 1/4/8/9/16/25/36
• Display 2nd Screen: 1/4/8/9/16
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank
• Alarm Input 16 Channel, Low Level Effective, Green Terminal Interface
• Relay Output 8 Channel, NO/NC Programmable, Green Terminal Interface
• Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm, etc.

Playback and Backup

• Playback 128 Mbps in Raid 5 Mode, 64 Mbps in single HDD Mode
• Search Mode Time /Date, Alarm, MD and Exact Search (accurate tosecond)
• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode USB Device/Network/Internal SATA burner/eSATA Device

Storage

• Internal HDD 8 SATA III Ports, Up to 48 TB
• HDD Mode Single, Raid 0/1/5/6/10/50/60 (Support Global HDD Hot-spare)
• eSATA 1 eSATA Port

Auxiliary Interface

• Front Cover Support Hot-swap
• USB 4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
• RS232 1 Port for PC Communication and Keyboard
• RS485 1 Port for PTZ Control

Third-party Support

• Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video

• IP Camera Input 128 Channel
• Two-way Talk 1 Channel Input, 1 Channel Output, RCA

Recording

• Compression H.265/H.264/MJPEG
• Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p
• Record Rate 384 Mbps
• Bit Rate 1 Kbps to 20 Mbps per Channel
• Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop
• Record Interval 1 to 120 min (default: 60 min),
• Pre-record: 1 to 30 sec, Post-record: 10 to 300 sec

Network

• Interface 2 RJ-45 Ports (10/100/1000 Mbps)
• Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent 1000 Mbps Ethernet Ports
• Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS)
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android
• Interoperability ONVIF 2.4, CGI Conformant

Electrical

• Power Supply 110 to 240 VAC, 50/60 Hz
• Power Consumption < 20 W, without HDD

Environmental

• Operating Conditions -10°C to +55°C (+14°F to +131°F), 86 to 106 kpa
• Storage Conditions -20°C to +70°C (-4°F to +158°F), 0 to 90% RH

Construction

• Dimensions 444.0 mm × 454.90 mm × 90.40 mm (17.4 in. x 17.9 in. x 3.5 in.)
• Net Weight 9.0 kg (19.80 lb), without HDD
• Gross Weight 10.50 kg (23.10 lb)
• Installation 19-in. Rack-mounted (includes rack mount ears)

Certifications

• FCC SEFD1602115

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.

Premium Features

• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
• Heat Map Generates a visual representation of data
