Replaced by the DHI-NVR6A0864-4KS2

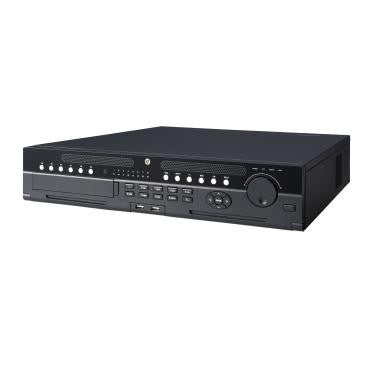

Dahua DHI-NVR6A08-64-4K Features
System
- Main Processor Intel Processors
- Operating System LINUX
Video & Audio
- IP Camera Input 64 channel
- Two-way Talk 1channel Input, 1channel Output, RCA
Display
- Interface 2 HDMI (up to 3840×2160), 1 VGA
- Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
- Multi-screen Display The 1st screen: 1/4/8/9/16/25/36
- The 2nd screen: 1/4/8/9/16
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
- Compression H.264/MJPEG
- Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
- Record Rate 256Mbps
- Bit Rate 1~ 20Mbps
- Record Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
- Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
- Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
- Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
- Alarm Input 16ch, low level effective, green terminal interface
- Relay Output 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
Playback & Backup
- Playback 128Mbps in Raid 5 mode
- 64Mbps in single HDD mode
- Search Mode Time/Date, Alarm, MD & Exact search (accurate to second)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
- Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Network
- Interface 2 RJ-45 ports (10/100/1000Mbps)
- Ethernet Port 2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports
- Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android, Windows Phone
Storage
- Internal HDD 8 SATA III ports, up to 48TB
- HDD Mode Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
Auxiliary Interface
- USB 4 USB ports(3 USB2.0, 1 USB3.0)
- eSATA 1 eSATA port
- RS232 1 port, For PC communication& keyboard
- RS485 1 port, For PTZ control
General
- Power Supply AC110V~240V, 50~60Hz
- Power Consumption <40W (Without HDD)
- Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
- Dimension (W×D×H) 486mm(with ears)×454.9mm ×91mm
- Weight 9kg (without HDD)
- Installation 19” Rack-mounted
